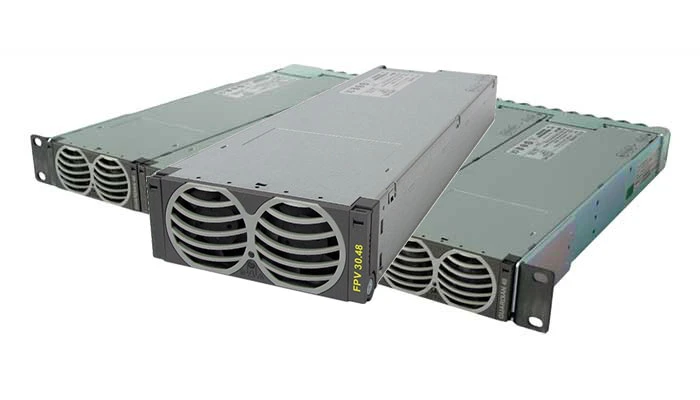

UNIPOWER Guardian FPV30.48 Converter
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
The compact UNIPOWER Guardian FPV30.48G 2.9kW 48VDC 60 amp Solar PV Converter joins the ranks of the Guardian products family supporting up to 14.5kW solar arrays in a 1RU 23” shelf.
On this page:
The compact UNIPOWER Guardian FPV30.48G 2.9kW 48VDC 60 amp Solar PV Converter joins the ranks of the Guardian products family supporting up to 14.5kW solar arrays in a 1RU 23” shelf. Maximum energy harvest from the valuable photovoltaic (PV) array is accomplished through a >99% Maximum Power Point Tracking (MPPT) algorithm. Alpine Power Systems is an approved vendor of UNIPOWER products. The Guardian FPV30.48 has a three year warranty.
The FPV 60 amp Solar PV Converter provides a modular building block for Renewable Energy and Hybrid sites and caters for a broad blend of CapEx, OpEx and ROI models. Accompanied by the Guardian Power System, indoor and outdoor enclosures and PV string combiners, UNIPOWER provides a total site solution across a wide range of challenging environments.
Guardian FPV30.48 Features & Options:
True MPPT >99% energy harvest
Auto-detection of PV array size
2.9kW output power
Rugged input voltage from 130-360VDC
95% efficiency
International standards compliance
Thermal protection
Modular design, interoperable with AC-DC rectifiers in Guardian Systems
Guardian FPV30.48 Specifications:
Input
Voltage: Nominal MPPT: 130 – 345VDC (Safety approved input voltage range)
Startup: 120VDC
Shutdown: > 400VDC
Derated Output Power: < 180VDC
Current: 16Arms nominal, 17.6Arms max
Surge Immunity: EN61000-4-5
Output
Voltage Range: 44-57.6VDC
Power: 2900W
Current: 60A Maximum
Efficiency: 95% Peak
Tolerance: Vout ±1.0%
Transient Response: ±5% at load variation 10-90% or 90-10%, 50ms recovery
Load Sharing: MPPT unconstrained, otherwise <5% of nominal current
Ripple: <200mV p-p (BW 20 MHz)
Psophometric: <2mV, according to CCITT norms
Standards
Safety: UL/CSA 60950-1, 2nd Ed. | EN60950-1 2nd Ed. | IEC60950-1 2nd Ed.
EMC: EN61000-6-2, EN61000-6-3, FCC Part 15 Class B, EN61000-6-2, EN 61000-6-4
Environmental:
Storage: ETSI EN300 019-2-1
Transport: ETSI EN300 019-2-2
Operation: ETSI EN300 019-2-3
Damp Heat: IEC60068-2-78
MIL-STD-810D section 507.2
Earthquake: GR 63 Core Zone 4
Mechanical
Dimensions, inches (mm): 4.2 W x 14.0 D x 1.6 H (107 W x 355 D x 41 H)
Weight: 4.6lbs. (2.1kg)
Cooling: Fan-cooled, speed controlled
Insulation:
4.25kVDC primary-secondary
2.12kVDC primary-ground
0.1kVDC secondary-ground
Enclosure: IP20
Mounting: 19in/23in x 1U subrack up to 4/5 module
General
Protection: Short circuit proof, Automatic current limiting, Selective shutdown of modules at excessive output voltage, Thermal protection
Alarms: High output voltage/ shutdown, Low voltage / module failure
LED Indicators:
Green ON: Power ON
Red ON: Module failure / high output voltage/ shutdown
Yellow: ON: Current limit, Thermal protection | Blinking: Communication failure
Audible Noise: <60dBA
Operating Temperature: -40°C to +65°C up to 2000m Reduced spec -40°C to -20°C Derated output power from 45°C linear derating to 65°C For 3000m altitude derated by 5°C
Storage Temperature: -60°C to +85°C
MTBF @ 25°C (without fan):
Telcordia SR-332, Issue 3: 450kh @ 25°C, with fan
MIL-HDBK-217F-2: 273kh @ 25°C, with fan
Alpine Power Systems is a value-added reseller of UNIPOWER products. Alpine can provide DC Power System services on all UNIPOWER products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine is ISO 9001 Quality, 14001 Environmental, & 45001 Health & Safety Certified. Call our inside sales group at 877-993-8855 for assistance.
Applications
- Industrial
- Renewable Energy
