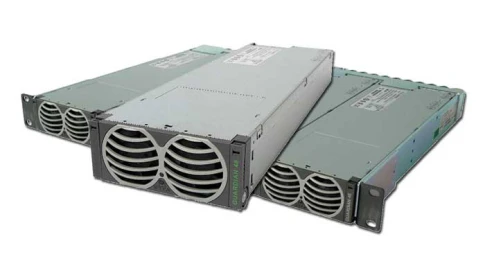

UNIPOWER Guardian FMPe30.48J Rectifiers
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
The UNIPOWER Guardian FMPe30.48J 62.5 amp rectifier incorporates resonant technology to reduce component stresses, providing increased system reliability and a best-in-class efficiency of 96.2% peak.
On this page:
The UNIPOWER Guardian FMPe30.48J 62.5 amp rectifier incorporates resonant technology to reduce component stresses, providing increased system reliability and a best-in-class efficiency of 96.2% peak. This 3000 watt rectifier features a wide input operating voltage range to maximize power availability within demanding utility power environments. Alpine Power Systems is an approved vendor of UNIPOWER products. The Guardian FMPe30.48J has a three year warranty.
These compact 62.5 amp rectifiers support up to 15kW in a 1RU 23” shelf. A wide variety of distribution options are available to provide the maximum system flexibility for a wide range of communications applications that demand efficiency, reliability, and flexibility including wireless base stations, remote switches, and broadband access.
Guardian FMPe30.48J Features & Options:
High efficiency and energy saving
96.2% peak efficiency
Leading power density of up to 32W/in3
Rugged input voltage range
Thermal protection
Hot-swappable
International standards compliance
Guardian FMPe30.48J Specifications:
Input:
Voltage: Operating Range: 85-275VAC. Permitted variation: 85-300VAC (L-PE and N-PE <250VAC)
Current:
<13.1A @ 240VAC
<18.5A @ 110VAC
Frequency: 47-63Hz
Power Factor: >0.99 at >25% load
Fuse: Two 25A fast blow (L & N)
Output:
Voltage Rating: 46-57.6VDC
Power:
3000W at ≥180VAC
1720W at 110VAC
1300W at 85VAC
Current: 48V Nominal, 53.5V Float
66.5A at ≥180VAC, 561A at ≥180VAC
35.8A at 110VAC, 32.1A at 110VAC
27.1A at 85VAC, 24.3A at 85VAC
Derating: 18.2W/Vin from 185-85Vin
Efficiency: >96.2% peak
Tolerance: Vout ±1.0%
Transient Response: ±5% at load variation 10-90% or 90-10% 20ms recovery
Load Sharing: <5% of nominal current
Ripple: <250mV p-p (BW 20 MHz)
Psophometric: <2mV, according to CCITT norms
Standards:
Inrush Current: ETSI ETS 300 132-1
Harmonics: EN61000-3-2
EMC:
ETSI EN300 386 V.1.3.2
EN61000-6-1, EN61000-6-2
EN61000-6-3, EN61000-6-4
EN55024 performance criterion A
EN55022 Class B
Telcordia NEBS GR1089
Environmental:
Storage: ETSI EN300 019-2-1
Transport: ETSI EN300 019-2-2
Operation: ETSI EN300 019-2-3
Damp Heat: IEC60068-2-78
MIL-STD-810D section 507.2
Earthquake: GR 63 Core Zone 4
Mechanical:
Dimensions, inches (mm): 4.2 W x 14.0 D x 1.6 H (107 W x 355 D x 41 H)
Weight: 4.6lbs. (2.1kg)
Cooling: Fan-cooled, speed controlled
Insulation:
4.25kVDC primary-secondary
2.12kVDC primary-ground
0.2kVDC secondary-ground
Enclosure: IP20
Mounting:
19in/23in x 1U subrack
Up to 4/5 modules
General:
Protection:
Short circuit
Automatic current/power limiting
Input/output overvoltage
Thermal
Alarms:
Fan failure
Short circuit/arcing protection
High temperature/output voltage
Low output voltage
Input voltage out of range
Low fan speed (warning)
Internal communication failure
LED Indicators:
Green: AC normal operation
Yellow steady: Low fan speed, High temperature
Yellow flashing: Comms. failure
Red: Module alarm / shutdown
Audible Noise (nominal input)
<45dBA @ ≤25°C (50% load)
<60dBA (100% load)
Operating Temperature:
-40°C to +75°C up to 2000m
Reduced spec -40°C to -20°C
Derated output power from 55°C linear derating to 75°C
For 3000m altitude derated by 5°C
Storage Temperature: -60°C to +85°C
MTBF @ 25°C (without fan): >832,000 hours to Telcordia (Belcore) SR-332 Iss.1
Alpine Power Systems is a value-added reseller of UNIPOWER products. Alpine can provide DC Power System services on all UNIPOWER products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine has 25 locations and 200 technicians that are available to provide service nationwide. Call or email us today for quotation requests and technical inquiries.
