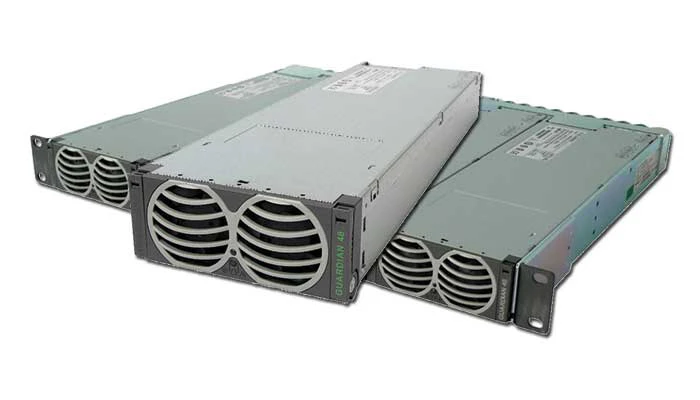

UNIPOWER Guardian FMPe30.48G Rectifiers

The UNIPOWER Guardian FMPe30.48G 60 amp rectifier incorporates resonant technology to reduce component stresses, providing increased system reliability and a best-in-class efficiency. The rectifier features a wide input operating voltage range to maximize power availability within demanding utility power environments. Alpine Power Systems is an approved distributor of UNIPOWER products. The Guardian FMPe30.48G has a three year warranty.

These compact 60 amp rectifiers support up to 14.5kW in a 1RU 23” shelf. A wide variety of distribution options are available to provide the maximum system flexibility for a wide range of communications applications that demand efficiency, reliability, and flexibility including wireless base stations, remote switches, and broadband access.

Guardian FMPe30.48G Features & Options:

• High efficiency and energy saving

• >95% typical efficiency

• Leading power density of up to 31.3W/in3

• Rugged input voltage range

• Thermal protection

• Hot-swappable

• International standards compliance

Guardian FMPe30.48G Specifications:

Input:

• Voltage: Operating Range: 85-275VAC. Permitted variation: 85-300VAC (L-PE and N-PE <250VAC)

• Current:

  • <12.7A @ 240VAC

  • <17.9A @ 110VAC

• Frequency: 47-63Hz

• Power Factor: >0.99 at >25% load

• Fuse: Two 25A fast blow (L & N)

Output:

• Voltage Rating: 46-57.6VDC

• Power:

  • 2900W at ≥180VAC

  • 1700W at 110VAC

  • 1271W at 85VAC

• Current: 48V Nominal, 53.5V Float

  • 60.4A at ≥180VAC, 54.2A at ≥180VAC

  • 35.4A at 110VAC, 31.8A at 110VAC

  • 26.50A at 85VAC, 23.8A at 85VAC

• Derating: 17.1W/Vin from 180-85Vin

• Efficiency: >95%

• Tolerance: Vout ±1.0%

• Transient Response: ±5% at load variation 10-90% or 90-10% 20ms recovery

• Load Sharing: <5% of nominal current

• Ripple: <250mV p-p (BW 20 MHz)

• Psophometric: <2mV, according to CCITT norms

Standards:

• Inrush Current: ETSI ETS 300 132-1

• Harmonics: EN61000-3-2

• EMC:

  • ETSI EN300 386 V.1.3.2

  • EN61000-6-1, EN61000-6-2

  • EN61000-6-3, EN61000-6-4

  • EN55024 performance criterion A

  • EN55022 Class B

  • Telcordia NEBS GR1089

• Environmental:

  • Storage: ETSI EN300 019-2-1

  • Transport: ETSI EN300 019-2-2

  • Operation: ETSI EN300 019-2-3

  • Damp Heat: IEC60068-2-78

  • MIL-STD-810D section 507.2

  • Earthquake: GR 63 Core Zone 4

Mechanical:

• Dimensions, inches (mm): 4.2 W x 14.0 D x 1.6 H (107 W x 355 D x 41 H)

• Weight: 4.6lbs. (2.1kg)

• Cooling: Fan-cooled, speed controlled

• Insulation:

  • 4.25kVDC primary-secondary

  • 2.12kVDC primary-ground

  • 0.2kVDC secondary-ground

• Enclosure: IP20

• Mounting:

  • 19in/23in x 1U subrack

  • Up to 4/5 modules

General:

• Protection:

  • Short circuit

  • Automatic current/power limiting

  • Input/output overvoltage

  • Thermal

• Alarms:

  • Fan failure

  • Short circuit/arcing protection

  • High temperature/output voltage

  • Low output voltage

  • Input voltage out of range

  • Low fan speed (warning)

  • Internal communication failure

• LED Indicators:

  • Green: AC normal operation

  • Yellow steady: Low fan speed, High temperature

  • Yellow flashing: Comms. failure

  • Red: Module alarm / shutdown

• Audible Noise (nominal input)

  • <45dBA @ ≤25°C (50% load)

  • <60dBA (100% load)

• Operating Temperature:

  • -40°C to +75°C up to 2000m

  • Reduced spec -40°C to -20°C

  • Derated output power from 55°C linear derating to 75°C

  • For 3000m altitude derated by 5°C

• Storage Temperature: -60°C to +85°C

• MTBF @ 25°C (without fan): >832,000 hours to Telcordia (Belcore) SR-332 Iss.1
