UNIPOWER Guardian Access M38 DC Power Systems

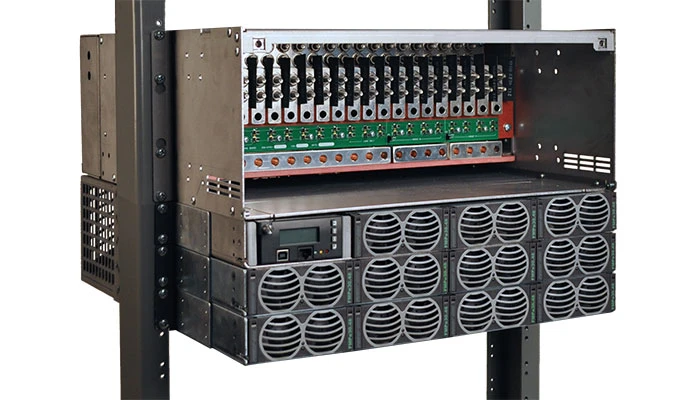

The UNIPOWER Guardian Access M38 is a 5-7RU high 19” rack-mounted, integrated 600 Amp DC power system providing an output of -48VDC. These highly configurable systems incorporate 3 rectifier shelves with up to 11 Guardian family high efficiency hot-swap rectifiers. The Guardian Access M38 comes with a three year warranty. Alpine Power Systems is an approved distributor of UNIPOWER products.

Guardian Access M38 provides a maximum total current of 600A (N+1). This may be shared between the load and battery charge current, the latter being programmable via the controller. The rectifiers are internally fan cooled with speed control which is a function of load and temperature, keeping acoustic noise to a minimum.
The DC distribution module in Guardian Access M38 can accommodate up to 20 pluggable breakers or TPS fuse modules. 4 or 8 of these in each case may be connected to the bus via the Low Voltage Battery Disconnect (LVBD).

Guardian Access M38 & Features and Options:

• >96% Efficiency Rectifiers

• 60A to 600A (N+1) Capacity

• Remote Monitoring & Control

• Field Replaceable Controller

• Ethernet Comm. with SNMPv3

• 3 LED Alarm/Status Indicators

• 10 Form-C Relay Alarms

• Up to 20 Load Circuits

• 600A LVBD Standard

• LCD Display/Touchpad

• Easy Installation

UNIPOWER Guardian Access M38 Output:

System Voltage: -48VDC nominal | -53.5 float (factory default setting, user adjustable)

Maximum Capacity:

• Load - 600A

• Battery - 600A discharge | 145A charge (s/w controlled)

No. Rectifier Slots: 3 to 11

UNIPOWER Guardian Access M38 DC Distribution:

• Load Circuits: Up to 20 (3A to 100A one position, 125A or 200A two position) Battery Circuits: 0, 4 or 8 x (100A one position, 125A two position or 200A two position)

UNIPOWER Guardian Access M38 Input:

Voltage (nominal): 1-phase 200-240VAC (L + N + PE)

Frequency: 47-63Hz

Maximum Input Current: 17A per rectifier

Rectifier Power Factor: >0.98 (typical)

UNIPOWER Guardian Access M38 Monitoring & Control (ACX Advanced Controller):

Alarm Relays: 10 standard

Local Interface: 4 x 20 LCD, 4-key menu, USB / RS232, microSD card slot (4GB max,) for data logging

Remote Interface:

• Ethernet / Modem using PowCom software package

• Ethernet port allows monitoring and control over a TCP/IP network.

• Web browser support + SNMPv3

LED Indications:

• Green - System ON

• Yellow - Message(s)

• Red LED - Alarm(s)

External Digital I/O: 2 x Inputs, 2 x Outputs (TTL Level)

UNIPOWER Guardian Access M38 Battery Management:

Symmetry Inputs: 6 or 12 (can be redefined as analog inputs up to 100VDC)

Low Voltage Battery Disconnect (LVD): 1 x 600A Programmable

Temperature Compensated Charging: Programmable

UNIPOWER Guardian Access M38 Compliance:

EMC: EN 300 386 ; EN61000-6-3 (Emission) ; EN61000-6-2 (Immunity)

Safety: IEC60950-1:2005 2 Ed. +A1:2009

UNIPOWER Guardian Access M38 Environmental:

Operating Temperature: -40ºC to +55ºC

Storage Temperature: -40ºC to +85ºC

UNIPOWER Guardian Access M38 Dimensions, Ins. (Mm):

Width: 19.0 (483)

Height: 5RU, 6RU,7RU

Depth: 21.6 (548) overall, 14.0 (255) behind mounting plate.

UNIPOWER Guardian Access M38 Intelligent Battery Management:

Battery Disconnection - Provides voltage-controlled disconnection of batteries.

Boost Charging - Manual time controlled or automatic boost charging with adjustable time and voltage levels.

Battery Tests - Automatic or manual testing of batteries up to six times per year with a 10-test memory. Variables include test duration and end voltage. Battery discontinuance test to ensure battery connection.

Enhanced Battery Monitoring - Monthly logging of essential battery parameters including temperature, temperature hours, current, charging voltage and symmetry voltage, Data logged for 5 years.

Site Logs - System tools developed to assist site management. Daily peak load and statistic logs available.

Symmetry Measurement - Optional tool that measures batteries for early detection of thermal runaway.

Temperature Compensation Charging - Allows continuous adjustment of output voltage according to battery temperature. Features include adjustable compensation factor and separate thresholds for high temperature alarms.

Load Shedding (PLD) - Optional feature that allows voltage or time-controlled disconnection of non-essential load.
