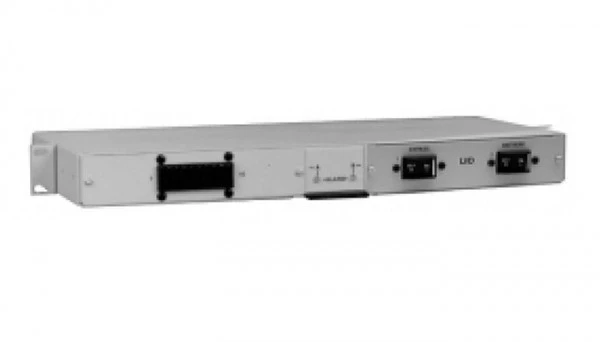

The UNIPOWER DPU1U Series UNIFLEX 1U distribution panels provide the ultimate flexibility in combining fuses, circuit breakers and/or an LVD in a dual (A/B) panel.
On this page:
The UNIPOWER DPU1U Series UNIFLEX 1U distribution panels provide the ultimate flexibility in combining fuses, circuit breakers and/or an LVD in a dual (A/B) panel. Alpine Power systems is an approved distributor of UNIPOWER products. The UNIPOWER DPU1U Series has a three year warranty.
A GMT section provides 10 fuses while a circuit breaker section provides 1-6 breakers. A low-voltage disconnect section is configured at the factory for either battery or load disconnect and can have an optional bypass switch. A battery circuit breaker is standard.
Each A and B section has an LED alarm indicator and Form C relay contacts. The A and B Sections of the 1U distribution panel are isolated and can be configured independently at the factory for 12, 24 or 48 VDC, positive or negative ground.
DPU1U Series 1U distribution panels are only one mounting position (1.75 inches) high and come with brackets that permit mounting in either a 19- or 23-inch relay rack. They can be mounted from the front of the rack with offsets every quarter-inch from front to back to align with existing rack-mounted equipment.
UNIPOWER DPU1U Features & Benefits:
One Mounting Position High: 1.75”
19- or 23-Inch Rack Mounting
Dual Section (A/B)
Current Capacity per Section: 60A to 150A
Operating Voltage: 12, 24 or 48VDC
Positive or Negative Ground
A & B are Isolated Loads
LED Alarms
Form C Relay Contacts, Each Load
Combination of Fuses, Breakers, LVD
GMT, KTK or Type 70 Fuses
1A to 50A Circuit Breakers
LVD has Battery Circuit Breaker
LVD in Series with Battery or Load
Rack Offset Every ¼” from Front to Back
Distribution Panels
UNIPOWER DPU1U Series Specifications:
Input / Output:
Panel Capacity:
Breakers: 150A per bus
Fuses: 80A per bus
LVD: 70A
Configuration:
Breakers: 1 to 6 - 1A to 50A
Fuses: 10 GMT - ½A to 12A
Voltage:
48V Nominal: 42-60VDC
24V Nominal: 21-30VDC
12V Nominal: 10.5-15VDC
Polarity: Positive or Negative Ground
Alarms:
Alarm Indicator: Dual-color LED Per Bus
LED Status Indication:
Green = Normal
Red = Alarm
Off = No Power
Alarm Connections:
Breakers or Fuses: One Form C Relay Contact each side
LVD: One Form C Relay Contacts for Disconnect or Battery Breaker
Safety Standards:
Certifications: UL1950, CSA22.2 No.950, EN60-950
Environmental:
Operating Temp. Range: -10°C to +70°C
Storage Temp. Range: -40°C to + 85°C
Humidity: 0% to 95%, Non-Condensing
Physical:
Case Material: Steel
Finish: Powder Coat Gray
Dimensions, Inches (mm): 1.75 (44.5) H x 19.00 (483) W x 9.00 (229) D
Weight: 8.76 - 9.73 lbs. (3.97 - 4.41 kg.)
Rack Mounting Width: 19 or 23 Inches using reversible mounting brackets
UNIPOWER DPU1U Standard Models:
DPU1U Side A:
Type: 10 x GMT Fuses
Amps: 80
Type: 1-6 x Breakers
Amps: 150
DPU1U Side B:
Type: 10 x GMT Fuses
Amps: 80
Type: 1-6 x Breakers
Amps: 150
Type: 1 x LVD
Amps: 70
