Most data centers have isolated cabinets that are not part of a hot or cold aisle design.
On this page:

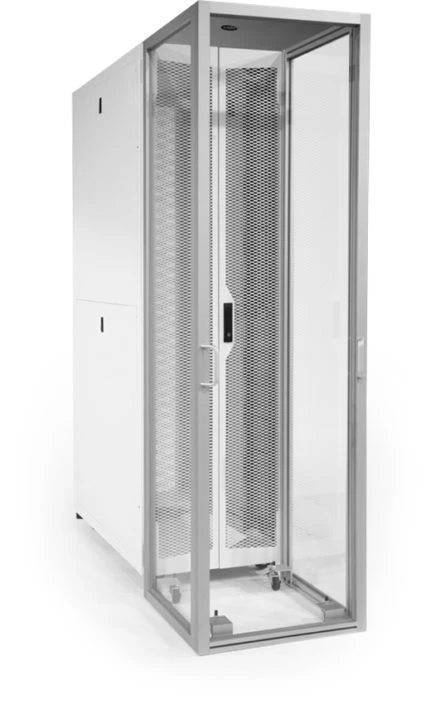

Most data centers have isolated cabinets that are not part of a hot or cold aisle design. The Subzero Engineering Polar Booth fully completes the separation of supply and return airflow by addressing isolated equipment. This portable booth can be used for cold or hot aisle applications to ensure complete separation of exhaust and supply air on stand alone IT equipment.
A common problem many data center managers encounter is supplying cold air to equipment that is not in a rack row or aisle. Perforated tiles located in front of isolated equipment only cool the bottom half of the cabinet. The remainder of the cabinet is cooled by the ambient airflow. As a result, the supply air temperature is set considerably colder than necessary to cool the ambient air. The Polar Booth contains the supply air to the equipment intake and ensures both a uniform and predictable temperature to all isolated IT equipment. Alpine Power Systems is a value-added reseller of Subzero Engineering products.
The Polar Booth can be used to contain either cold supply air, or direct hot exhaust air away, making it a perfect solution for equipment that is not in a dedicated hot or cold aisle configuration.
Polar Booth Key Features:
Rolling Containment System
Available Up to 6 Feet Wide
Can Easily be Moved
Used for Cold Air Supply
Used for Hot Exhaust Return
Rigid Design
Clear Panels
Comes in Clear or Black Anodized Finish
Polar Booth Technical Specifications:
Frame:
Physical Properties
Property:Material:Result:Tensile StrengthAluminum
22,000 psi
Features: Rolls easily on casters
Panel Inserts - Optional
3MM - ACRYLIC Flammability
Property:Test:Result:Smoke Dev.ASTM E84Class AFlame SpreadASTM E84Class CHorizontal BurnASTM D6351.18 in/minUL HorizontalUL9494 HB
4MM - POLYCARBONATEÂ Flammability
Property:Test:Result:Smoke Dev.ASTM E84Class AFlame SpreadASTM E84Class A
3MM -Â FM4910
Property:Test:Result:--UL94V0--FM4910Yes
Alpine Power Systems is a value-added reseller of Subzero Engineering products. Alpine can provide thermal management services on all Subzero products including engineering, installation, preventative maintenance, monitoring and recycling. Since 1963, working with Alpine Power gives you the Ultimate Advantage. Contact us today for pricing and technical inquiries.
Applications
- Enterprise Data Center
- Colocation/Hosting
