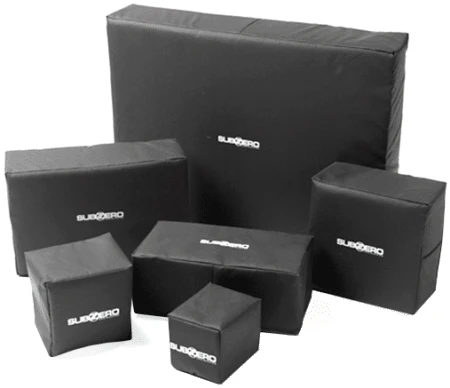

Subzero Cube
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
The Subzero Engineering Cube cable cutout cover is the most effective way to fill in openings in your raised floor. The Cube comes in a variety of sizes that will cover any opening required.
On this page:
The Subzero Engineering Cube cable cutout cover is the most effective way to fill in openings in your raised floor. The Cube comes in a variety of sizes that will cover any opening required. It can be ordered in custom sizes or several standard sizes. The Cube is made of a fireproof material and installation is easy. Simply compress or squeeze The Cube, place into the opening, and release! The Cube will instantly fill in all around the raised floor opening (top, bottom, and side). The Cube is specifically engineered with a 5-1/2″ depth so that it fully separates subfloor and ambient air. The Cube is the most effective way to cover these openings and to not lose cold air. Larger cubes can also be used to create a subfloor wall or baffle. The Cube is an easy and efficient way to manage airflow during data center expansions. Alpine Power Systems is a value-added reseller of Subzero Engineering products.
Subzero Cube Technical Specifications:
Physical Properties
Property:Units:Result:Â Thread Count#/in.Warp: 54Fill: 48Tensile StrengthLbs./in.Warp: 180Fill: 175ThicknessMils5-6Â Afterglow TimeSecondsWarp: 1.5Fill: 1.5Char LengthInchesWarp: .70Fill: 1.5AfterflameSecondsWarp: 1.0Fill: 1.0Tearing StrengthLbs.Warp: 8.0Fill: 7.5
Standard Sizes
4" x 4"6" x 6"9" x 9"12" x 12"4" x 24"6" x 12"9" x 14"12" x 12"Â 6" x 18"9" x 18"12" x 24"Â 6" x 24"9" x 24"Â Â 6" x 40"Â Â Â Â Â Â 16" x 16"18" x 18"20" x 24"24" x 24"16" x 20"18" x 24"Â 24" x 30"16" x 24"Â Â
Subzero Cube Features:
Will not ignite
Will not melt
Will not drip
Flexible
Will not shrink or stretch
Will not rot
Minimal smoke emission
Flammability:
Designed to meet:
NFPA 258
NFPA 701 (UL-214) Small Scale
Alpine Power Systems is a value-added reseller of Subzero Engineering products. Alpine can provide thermal management services on all Subzero products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine provides services for data centers, telecom, healthcare, oil & gas and many other applications. Call our inside sales group at 877-993-8855 for assistance.
