SENS EnerGenius IQ2 Battery Chargers

Alpine Power Systems' experienced technical support & sales team is here to assist your needs:

SENS EnerGenius IQ2 SCR industrial utility battery chargers and rectifiers power DC equipment, charge your battery, automatically tests battery performance, and communicates DC system status.

SENS EnerGenius IQ2 Battery Chargers

On this page:

SENS EnerGenius IQ2 SCR industrial utility battery chargers and rectifiers power DC equipment, charge your battery, automatically tests battery performance, and communicates DC system status. EnerGenius IQ2 is an update of SENS’ popular EnerGenius IQ charger.

SENS EnerGenius IQ2 Battery Chargers are ideally suited for global applications with a wide range of input voltages and certifications including: C-UL listing, CE marking, IBC seismic, ABS type approval and optional OSHPD and PIP compliance. The optional protocol processor provides advanced networking capabilities including Modbus remote communications and data logging.

SENS EnerGenius IQ2 Battery Charger Benefits:

  • Advanced: Full digital control, self-diagnostics & communications

  • Compatible: Fit, form & function compatible with first generation IQ chargers

  • Informative: Easy to read mimic panel, digital display and LEDs

  • Communications: Modbus available now, other protocols on request

  • PIP specification compliant: Includes optional high current relay

  • Super reliable: Industry-leading 5-year warranty

SENS EnerGenius IQ2 Battery Charger Features:

  • Stainless steel construction: No rust and no paint to touch up. Resists corrosion far better than materials used in competing products.

  • Industry’s best warranty coverage: The entire charger is warranted for five years.

  • Patented charging performance: IQ2 patented charging features deliver the industry’s fastest and safest charging that, in some applications, nearly double battery life.

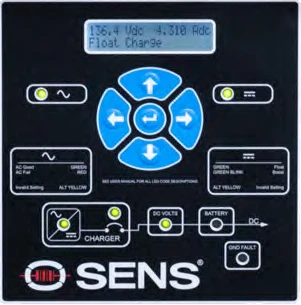

  • LED system mimic panel: Provides system status at a glance, now including ground fault indication.

  • Advanced functions, proven in service: IQ2 employs the same DSP-based architecture,
    firmware and digital data bus proven in thousands of SENS switchmode power systems.

  • More versatile: IQ2 meets all specs as the original EnerGenius IQ, and more. New spec compliance includes Process Industry Practices (PIP) and more flexible alarm relay configurations.

  • Integrated battery check cuts risk of failure: Lead-acid batteries frequently fail without warning. The on-board battery check system determines if your battery can support a connected continuous load without taking the battery offline or shutting down the charger.

  • Constant voltage, current limited, filtered DC: Simultaneously supplies filtered DC to critical loads, recharges the connected system battery and automatically maintains flooded lead-acid, Ni-Cd or lithium batteries in peak condition.
    Upgradable from the original to IQ2: IQ2 is fit, form and function compatible with first generation IQ chargers. The easy upgrade of first generation IQ chargers enables all new functions at much lower cost than a new charger.

SENS EnerGenius IQ2 Battery Charger Dimensions:

  • 23.6" x 16.1" x 27.8" (L x W x H)

    • Wall mount configuration (add 3.75” [95.25 mm] height for free-standing option, 23” rack mount also available)

IQ2 is fit, form and function compatible with the original EnerGenius IQ. Employing the same power train as the original EnerGenius IQ, IQ2 adds the advanced DSP-based control and firmware proven in thousands of SENS’ MicroGenius and EnerGenius DC platforms. First generation EnerGenius IQ chargers can be easily upgraded to full IQ2 function by swapping circuit boards and the front door mimic panel/LED overlay.

Demonstrating SENS’ commitment to quality and to surviving harsh industrial and utility environments, IQ2 is equipped with SENS’ unique corrosion-proof all stainless-steel housing and backed by industry-best five-year warranty.

Alpine Power Systems is a value-added reseller of SENS products. Alpine can provide DC Power System services on all SENS products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine’s Certified Technicians are equipped to maximize the performance and efficiency of your UPS system. Contact us today for pricing and technical inquiries.

Applications

  • Process Control
  • Switchgear
  • Industrial

Manufacturer

SENS

SENS

See below for documentation relating to this product line that is available to download. To download this documentation, please click on the desired document you’d like to download and fill out the required form information fields. You will be able to view and download the documents upon completion of the download form.

PDF Document
sens-energenius-iq2-battery-charger-data-sheet.pdf
PDF Document
sens-energenius-iq2-battery-charger-user-manual.pdf
