OmniOn Power Integritas Industrial DC Power System
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
The Integritas™ Industrial DC Power System family provides a comprehensive, configurable set of solutions for mission critical DC-powered applications by combining AC/DC power conversion, battery charging, and power distribution into an integrated package.
On this page:

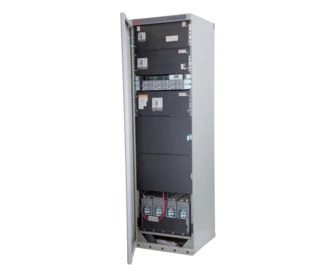

The Integritas™ Industrial DC Power System family provides a comprehensive, configurable set of solutions for mission critical DC-powered applications by combining AC/DC power conversion, battery charging, and power distribution into an integrated package. Central to this product offering is its modular, reliable, highly efficient switch-mode rectifier (SMR), which converts power from AC to DC. Designed as a floor-mounted cabinet solution, the power system boasts true redundancy, a state-of-the-art controller with monitoring and alarms, as well as NERC compliance capabilities.Â
Applications
- Switchgear
- Emergency Lighting
- UPS
Manufacturer
A complete DC power system with distributed power output and battery backup all included in one unit.
Two types available: Type 1 which combines DC power and batteries into a single cabinet, and Type 2 where batteries are separate (for larger systems).
Primary DC output voltages in 24V, 48V, 125V, or 240V classifications.
Power capacities ranging from 2.6 kW to 20 kW (Type 1) and up to 125 kW (Type 2).
AC/DC power rectification using modular SMRs offers redundancy and expandability.
Integrated DC distribution eliminates the need for a separate distribution panel.
Battery charging with battery circuit breaker included.
Provides complete DC uninterruptible power supply (UPS) functionality.
See below for documentation relating to this product line that is available to download. To download this documentation, please click on the desired document you’d like to download and fill out the required form information fields. You will be able to view and download the documents upon completion of the download form.
