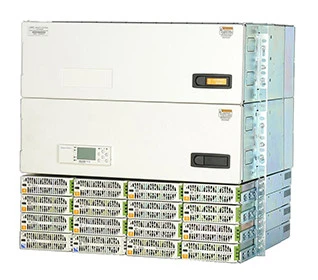

OmniOn Power Infinity S

The Infinity S DC power system is a compact power plant that supports dual-voltage operation using a comprehensive range of advanced rectifiers and DC/DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC/DC converter modules.

The Infinity S power system has primary voltage capacity for +24V and -48V power up to 800A with a secondary voltage capacity up to 300A. Secondary voltage solutions for traditional cell site transitions are primary +24V to secondary -48V, primary -48V to secondary +24V, and a primary -48V to secondary -58V capability to provide boosted voltage feeds for powering remote radio heads to mitigate voltage drop in long cable runs up the cell tower.  A primary -48V to secondary +12V configuration also is available for microwave and rail applications.

Shelf / Bay Options

Infinity S systems features mounting rails for field install applications and may be equipped in a 7 ft 23” relay rack; or a half height rack for mounting on battery stands. The distribution module is 4U tall and accommodates up to 26 single voltage or selectable voltage bullet breaker positions (20 positions in 19” systems). Universal shelves are 1U tall with four slots that accept any Infinity series rectifier or converter interchangeably in any power slot. This allows the available slots to be filled with the mix of power modules desired.

The only restriction is whether AC power is applied to the shelf. This gives extreme flexibility in the provisioning of power modules within the system.

Infinity Rectifier and Converter Family

The Infinity Series offers DC rectifiers and converters for both +24V to -48V, -48V to +24V, -48V to +12V, and -48V to -58V applications. For easy module selection, the rectifiers and converters are color coded to quickly identify voltage, module type and input voltage type (AC or DC).

Galaxy Pulsar* Plus Controller

The Galaxy Pulsar Plus is used throughout many of the OmniOn DC Power products including Infinity, CP, and SPS with the only differentiator being the form factor which is scaled to meet the nature of the application. The controller utilizes standard network management protocols allowing for advanced network supervision with SNMP communications to deliver extensive monitoring and control features with both local and remote access.
