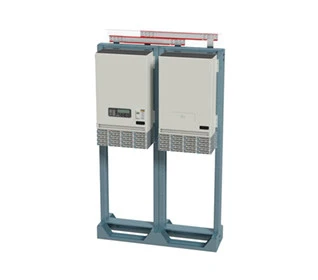

OmniOn Power Infinity M HC
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
Infinity M HC may be configured as a +24V or -48V single-voltage power system or as a dual-voltage power system that supports rectifiers and converters.
On this page:
Infinity M HC may be configured as a +24V or -48V single-voltage power system or as a dual-voltage power system that supports rectifiers and converters. The primary voltage is supported by +24V or -48V rectifiers and battery reserve, while secondary voltage is supported by DC/DC converters. The primary voltage capacity is up to 2,100A at 24V or 48V. When equipped, secondary voltage capacity is up to 600A per horizontal panel. Secondary voltage solutions for traditional cell site transitions are primary +24V to secondary -48V, primary -48V to secondary +24V, and a primary -48V to secondary -58V capability to provide boosted voltage feeds to mitigate voltage drop when powering remote radio heads with long cable runs up the cell tower. A primary -48V to secondary +12V also is available for microwave and rail applications.
The high-capacity Infinity M can range from 1,200 to 2,100A in single bay which can be expanded with a supplemental bay for total system capacity of 4,200A. Infinity M HC systems may be equipped in a 7-foot framework, a half-height (42”) frame for mounting on battery stands, or supplied frameless for field install applications.
Applications
- CATV Headend
- CATV & Broadband
- Central Office
- DAS
- Small Cell
- Wireless Base Station
Manufacturer
Infinity-series rectifiers for +24V and -48V applications.
Dual-voltage bus architecture for easy growth and voltage migration.
DC/DC converter support for dual-voltage systems.
DC distribution for both voltages, with selectable voltage panel availability.
Temperature-hardened for harsh environments. (-40C to 75C).
Compact size: Base system with four power shelves occupies 18 RU (31.5 in) of 23”-wide rack space (21” depth).
Battery connections, low-voltage battery disconnect, and low-voltage load disconnect options.
Plug-and-play, secure protocol Pulsar Plus controller with web-based interface for local and remote IPv6 (LAN) access.
Distribution options include 3A-300A bullet-style circuit breakers, large G-J breakers to 600A, TPL fuses up to 600A, and GMT fuses.
