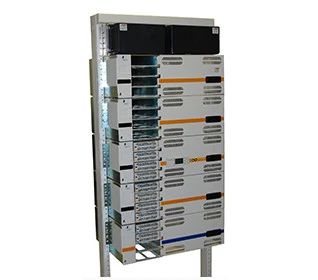

The Infinity D power system is a modular power plant that supports dual voltage (+24V/-48V) operation through the use of a comprehensive range of advanced rectifiers and DC/DC converters.
On this page:
The Infinity D power system is a modular power plant that supports dual voltage (+24V/-48V) operation through the use of a comprehensive range of advanced rectifiers and DC/DC converters. Primary voltage is supported by rectifiers and battery reserve, while secondary voltage is supported by DC/DC converter modules. Primary voltage can be -48V or +24V.
The Infinity D power system has primary voltage capacity for +24V or -48V power up to 1,600A. Secondary voltage capacity is up to 300A per expansion module.
Applications
- CATV & Broadband
- Central Office
- DAS
- Small Cell
- Wireless Base Station
Manufacturer
Modular DC power system enables low initial investment with future expansion potential.
-48V up to 1,600A (87kW) or +24V up to 1,600A (43kW).
DC power plant with 24V and 48V DC dual voltage flexibility.
High-availability wireless telecom applications.
Telecom service providers and OEMs.
Efficiency up to 97%.
See below for documentation relating to this product line that is available to download. To download this documentation, please click on the desired document you’d like to download and fill out the required form information fields. You will be able to view and download the documents upon completion of the download form.
