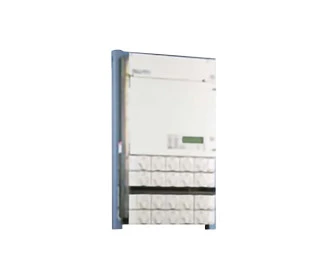

OmniOn Power CPS6000 M2 Power System

The 48V CPS6000-M2 power plant is a 23-inch-wide, front-access, frame-mounted battery plant. The system integrates the QS-series rectifiers and ringers, extensive DC distribution options, battery connections and the Galaxy Millennium II controller in 500A and 1000A capacity systems. The system operates directly from commercial power in 208/220/240VAC single-phase at 50/60Hz. 110VAC operation is also available with some rectifiers where AC connects to a terminal block panel at the top of the system.

Shelf / System Options

CPS6000 Plant is a -48Vdc rack mounted power system that includes high density rectifier shelves and extensive distributions shelves with the QS series rectifiers and ringers found in the CPS6000 product line. The CPS6000 Plant Power System can be configured in both 42” and 84” tall 23” wide racks with optional battery trays.

Rectifier/Ringer Options

The CPS6000 has a wide range of rectifiers from 15A to 50A with input voltages both in 120V and 208/240V nominal for worldwide application. The entire line of rectifiers is designed for operation in the temperature range -40C to +75C. The CPS6000 is also available with the ringer module for 100VA ring voltage generation with true 1+1 redundancy for reliable remote terminal deployment.

Galaxy Millennium II Controller

The Galaxy Millennium II controller combines sophisticated power monitoring and remote management. This flagship controller simplifies operations and maintenance while lowering administrative costs. Remote peripheral modules support over 500 monitoring points for OmniOn or third party devices. Ethernet, SNMP, and TL1 provide integration with power engineering and NOC workflow

• Rack systems up to 1000 Amps

• 15” depth, ideal for limited spaces

• 96% efficiency

• Rectifier commonality with CPS6000 OSP systems

• Deployed in small central offices, hut/vault, and large customer premise applications

• Available battery trays for stand alone deployment
