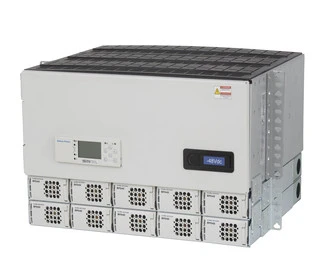

OmniOn Power BPS Power System

The BPS product family provides reliable DC power where system height and depth are restricted. The power systems provide advanced controller features in compact, cost-efficient footprints. The BPS systems with pluggable DC breaker distribution panels incorporate a 1RU rectifier shelf that is 10.3 inches deep in both 19- and 23-inch-wide frames that provide five and six rectifier slots accordingly. The power systems incorporate OmniOn’s Pulsar family of controllers mounted in the primary distribution panel, and they provide ethernet connectivity to facilitate remote network management to monitor and control rectifiers, batteries, and distribution.

Benefits

• Incorporate 1RU rectifier for compact systems.

• Enables high-capacity breaker distribution configurations.

• Flexible solutions from 5RU to 10RU.

• Broad range of power from 2000W to 36000W.

• Provides efficiencies greater than 96%

Features

• Compact BP series rectifier for high density power in a shallow mounting depth.

• Digital load sharing.

• Back-bias powered system and rectifiers controllers to ensure peak plant operation throughout the plants operation.

• DC Distribution with each position selectable between load and battery breakers.

• Temperature hardened harsh environments. (-40ºC to +75ºC).

• Compact size: Base System with 1 power shelf occupies 5 RU (8.75 in) of 19” or 23” rack space (14.5”24” depth).

• Frame options-Factory installed in 7ft or 42” tall, 19” or 23” wide frame or field installed in user supplied frame.

• Optional battery earthquake zone 4 rated battery trays with either quick connections or integrated battery breakers.

• Bulk Battery connections, LVBD and LVLD options.

• Plug-N-Play Pulsar Plus controller with Web based interface for local and remote (LAN) access.

• Distribution options include 3A-300A bullet style circuit breakers, and GMT fuses.

• RoHS 10 Compliant
