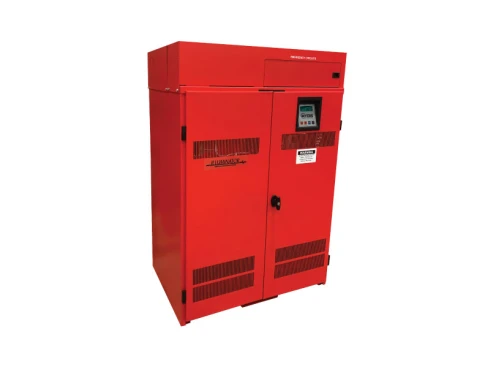

Myers Illuminator Supernova Inverters
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
The Myers Illuminator Supernova single phase inverters are designed with the industry-leading compact footprint and are available with robust communication options.
On this page:
The Myers Illuminator Supernova single phase inverters are designed with the industry-leading compact footprint and are available with robust communication options. These highly efficient systems range from 1.75KVA to 16.7KVA. Alpine Power Systems is a proud partner of Myers Emergency Power Systems.
Capacity and Dimensions
 1.75kVA/kW – 5.0kVA/kW – 48″ H x 24″ W x 25″ D
 6.25kVA/kW – 7.5kVA/kW – 53″ H x 36″ W x 25″ D
 10.0kVA/kW – 16.7kVA/kW- 78.3″ H x 42″ W x 25″ D
Illuminator Supernova Standard Features
Single Phase, Pure Sine Wave
UL 924 Self-Testing and Diagnostics via Front Meter Panel
Slide-out Assemblies for Easy Maintenance
Front Access, Maintenance-Free VRLA batteries
NEMA Type 1 Single Cabinet Space-Saving Design
Supports All Lamp Sources Including LED
Optional Features
Enhanced Communications
New IoT Inverter Connect Cloud Software
Expanded Building Management Protocols
Internal or External Maintenance Bypass
Summary Dry Form C Contacts
Remote Meter Panel
Output Circuit Breakers
Factory Startup and Training
Normally Off Output
Output Trip Alarms
Remote Summary Alarm Panel
Illuminator Supernova Sizes
1.75kVA, 2.5kVA, 3.75kVA, 5.0kVA, 6.25kVA, 7.5kVA, 10.0kVA, 12.5kVA & 16.7kVA
