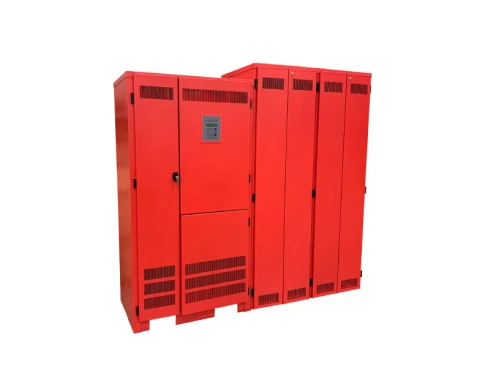

Myers Illuminator Hypernova Inverters

Myers EPS’ new Illuminator Hypernova inverter three-phase units are designed with industry leading compact footprint and features many robust communication options, such as the new IoT Inverter Connect cloud connectivity solution. Additionally, the modular battery cabinet configurations optimize mechanical space requirements. These highly efficient systems range from 5.0KVA to 50.0KVA and are perfect for all commercial applications including schools, data centers and distribution centers. Alpine Power Systems is a proud provider of Myers Emergency Power Systems' products.

Illuminator Hypernova Inverter Capacity and Dimensions

• 5.0kVA/kW — 10kVA/kW: Electronics Cabinet – 47″ H x 24″ W x 25″ D; Battery Cabinet – 62″ H x 17.5″ W x 25″ D

• 12.5kVA/kW — 16.7kVA/kW: Electronics Cabinet – 47″ H x 30″ W x 25″ D; Battery Cabinet – 77″ H x 22.75″ W x 25″ D

• 25kVA/kW— 33.2kVA/kW : 72″ H x 37.5″ W x 25″ D; Battery Cabinet – 77″ H x 45.5″ W x 25″ D

• 37.5kVA/kW — 50kVA/kW: 72″ H x 37.5″ W x 25″ D; Battery Cabinet – 77″ H x 68.25″ W x 25″ D

Illuminator Hypernova Inverter Standard Features

• Three Phase, Pure Sine Wave

• 120V/208V or 277V/480V

• UL 924 Self-Testing and Diagnostics via Front Meter Panel

• Internal Maintenance Bypass Switch

• Modular Battery Cabinet Design

• Front Access, Maintenance-Free VRLA batteries

• Supports All Lamp Sources Including LED

Optional Features

• Enhanced Communications

  • New IoT Inverter Connect Cloud Software

  • Expanded Building Management Protocols

• External Maintenance Bypass

• Summary Form C Contacts

• Remote Meter Panel

• Output Circuit Breakers

• Factory Startup and Training

• Normally Off Output

• Output Trip Alarms

• Remote Summary Alarm Panel

Illuminator Hypernova Inverter Sizes

• 5.0kVA, 7.5kVA, 10.0kVA, 12.5kVA, 16.7kVA, 25.0kVA, 33.2kVA, 37.5kVA & 50.0kVA
