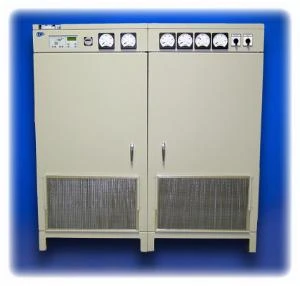

LTI ProUPS Third Rail Floor Mount Inverters
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
LTI Industrial Third Rail inverters are specifically designed for subway and railway applications. With rail applications, the incoming power can be extremely dirty and harmful to anything connected to it.
On this page:
LTI Industrial Third Rail inverters are specifically designed for subway and railway applications. With rail applications, the incoming power can be extremely dirty and harmful to anything connected to it.  LTI's inverter system is designed to withstand all transient spikes that frequently occur when rail cars pass by. All systems operate within the DC voltage range of 350 - 850VDC. These systems can be optionally equipped with an automatic static transfer switch if an external AC power source is available. All systems come standard with a network communications kit, and front panel monitoring. Alpine Power Systems is an authorized distributor of LTI products.
LTI ProUPS Third Rail Floor Mount Inverters Specifications:
Available in 10, 20, 30, 40, 60, 80, and 100kw Power Ratings
Single or Three Phase Outputs
50Hz and 60Hz Models
350 - 850VDC Input Acceptance Range
NEMA 1 Enclosure with 11ga steel frame, 12ga steel doors, 14ga side and rear panels
Three Point Locking Doors with Continuous Hinges
30 year designed life
Copper Wound Transformers
LED Power Flow Diagram
Form "C" Alarm Interface Contacts
LCD Monitoring Panel
Light Gray Powder Coat Finish
Ethernet RJ45 Network Communications Kit
Designed to meet UL1778, NEMA, NEC, ANSI, and FCC Requirements
LTI ProUPS Third Rail Floor Mount Inverters Options:
Analog Metering Package
Internal Static Switch
Air Filtration and Conformal Coating of PCBs
Multiple Output Voltages
Emergency Power Off / Shunt Trip
Drip Shield
316 Stainless Steel Cabinet
Customizable Designs for Unique Applications
Alpine Power Systems is a value-added reseller of LTI products. Alpine can provide DC Power System services on all LTI products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine is ISO 9001 Quality, 14001 Environmental, & 45001 Health & Safety Certified. Call or email us today for quotation requests and technical inquiries.
