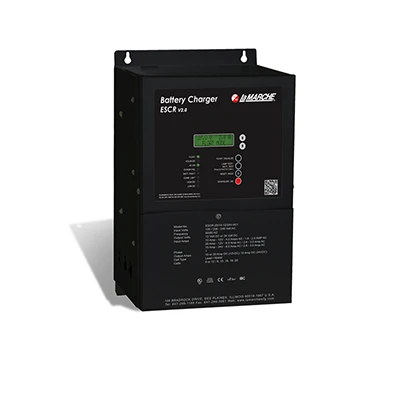

La Marche ESCR V2 SCR Chargers

The La Marche ESCR engine starting battery charger product line utilizes microprocessor controlled SCR Charging Technology. The PWM control provides the highest reliability that is required for maintaining and recharging engine start batteries for generator sets. This charger is suitable for various types of batteries such as flooded lead acid, VRLA and NiCad.

Automatic Input sensing for 120/208-240 VAC 50/60Hz does not require any tap changes. The (12V/24V/32V) multi-output configuration capability makes this product line flexible and convenient for multiple jobs. The 0.5% regulation, temperature compensation, battery check, equalize timer along with adjustable output voltage and current limiting assures longevity and performance for your batteries. This economical solution equipped with advanced features incorporates La Marche quality and reliability. Form “C” contacts are available for remote annunciation. Push button controls are used for Float/Equalize mode, Reset, Lamp Test and Configure. This multi-input/output all-in-one unit meets NFPA 110, C62.41A and UL safety requirements. It is also certified for seismic applications in accordance with International Building Code (IBC) & OSHPD / California Building Code.

Alpine Power Systems is a certified reseller of La Marche power products. Our network of nationwide certified technicians can perform cradle-to-grave services on La Marche DC power systems and chargers. Our critical power services include installation, maintenance, repairs, demission, and recycling of La Marche products.

Standard Features:

• Microprocessor Controlled SCR Technology.

• Auto Select Input 120/208-240 VAC, 50/60Hz.

• Field Selectable Output 12/24/32V VDC.

• Available Output Ranges 6-40 Amps.

• LCD Display.

• Alarm LED’s and Form “C” Contacts.

• Adjustable Float and Equalize Voltages.

• Automatic AC Input Voltage Compensation.

• AC to DC Isolation.

• Filtering Suitable for VRLA Batteries.

• Battery Fault Detection.

• Internal Temperature Compensation.

• Multimode Equalize Timer.

• Soft Start.

• Adjustable Current Limiting.

• Battery Test.

• High Voltage Shutdown.

• Meets NFPA 110 and C62.41A.

• Conformal Coated Circuit Boards.

• UL 1236 Listed.

• CUL Listing.

• CE Certified.

• IBC Certified for seismic applications.

• OSHPD Certified.

• ABS Approved.

• 5 Year Warranty.

Alpine Power Systems is a value-added reseller of La Marche products. Alpine can provide DC Power System services on all La Marche products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine provides services for data centers, telecom, healthcare, oil & gas and many other applications. Call our inside sales group at 877-993-8855 for assistance.
