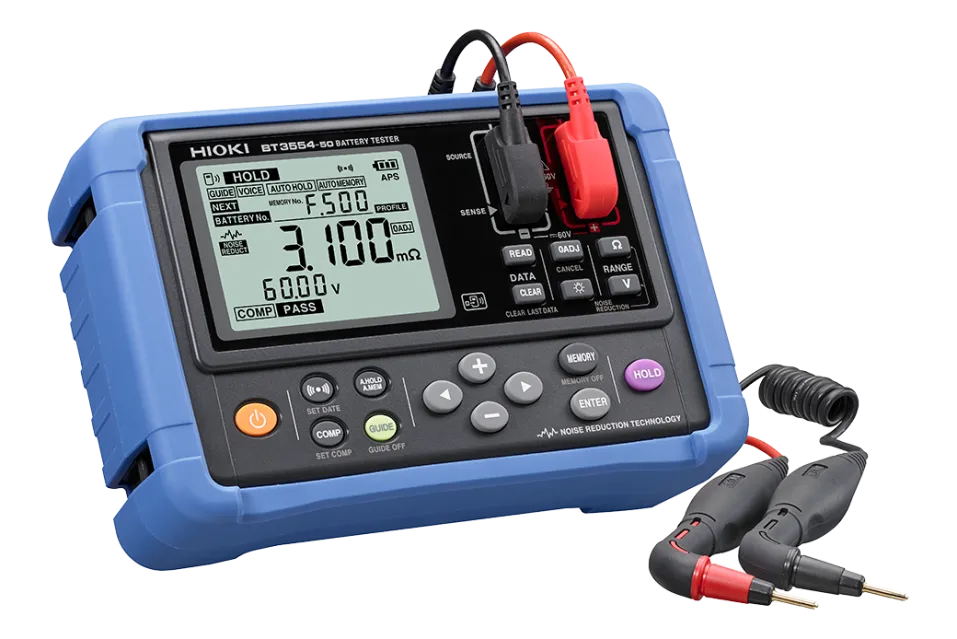

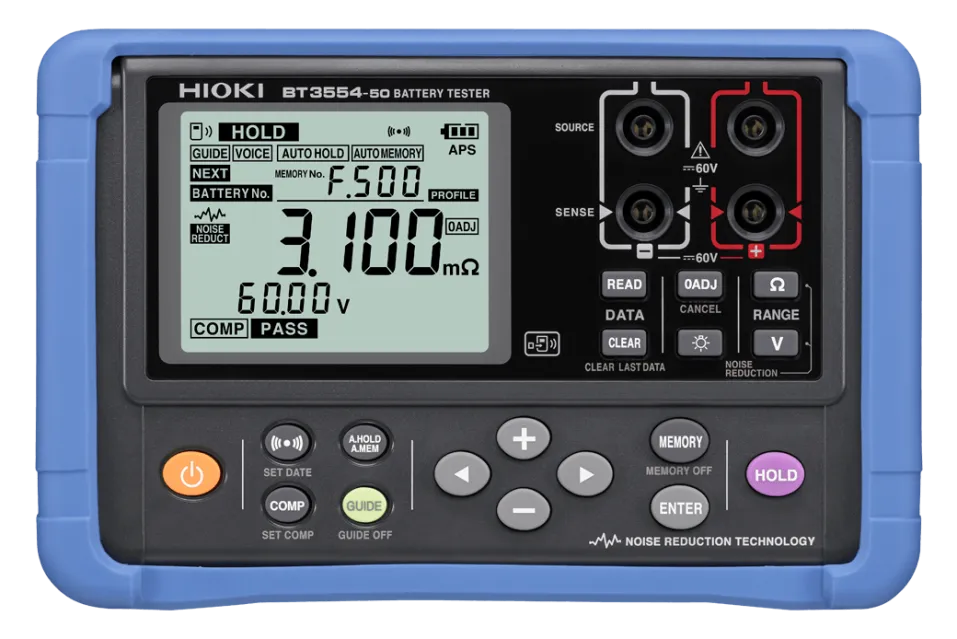

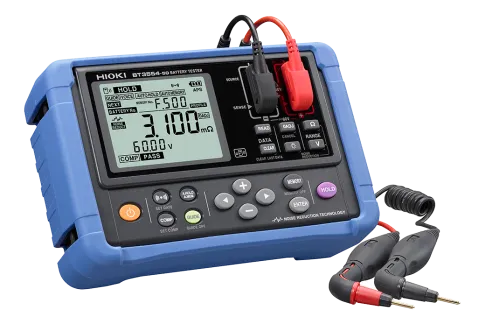

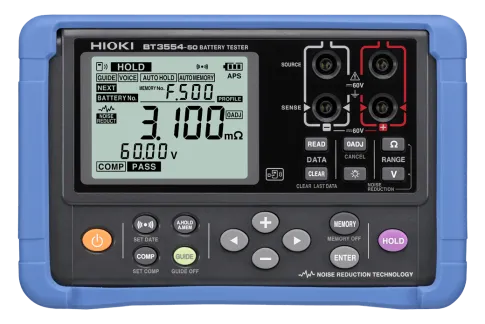

HIOKI Battery Tester BT3554-50

Alpine Power Systems' experienced technical support & sales team is here to assist your needs:

Streamline UPS and lead-acid battery diagnostics with measurement and recording guidance

On this page:

Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554-50 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals. Alpine Power Systems is a proud provider of Hioki products.

Model No. Order Code

BT3554-50 Pin Type Lead not included
BT3554-51 Bundled with Pin Type Lead 9465-10
BT3554-52 Bundled with Pin Type Lead L2020
BT3554-91 BT3554-51 plus Wireless Adapter Z3210
BT3554-92 BT3554-52 plus Wireless Adapter Z3210
BT3554-51 Pro KIT BT3554-51 plus Magnetic Strap Z5020 plus Wireless Adapter Z3210
BT3554-52 Pro KIT BT3554-52 plus Magnetic Strap Z5020 plus Wireless Adapter Z3210

BT3554-50 Key Features

Battery measurement can be performed while the battery is connected to its host device, without taking it offline
Measure and save data in as fast as 2 seconds, a 60 percent improvement from the legacy 3554
Instantaneously diagnose battery degradation PASS, WARNING, FAIL by measuring internal resistance and voltage
Noise reduction technology improves noise resistance
Screen and audio guidance simplifies measurement
Measurement data is linked to site information and saved, reducing management man hours
Easily transfer measurement data to your smartphone or tablet using the free GENNECT Cross app or to an Excel file. Wireless Adapter Z3210 is required
New protector delivers better ergonomic hold and durability in the field
