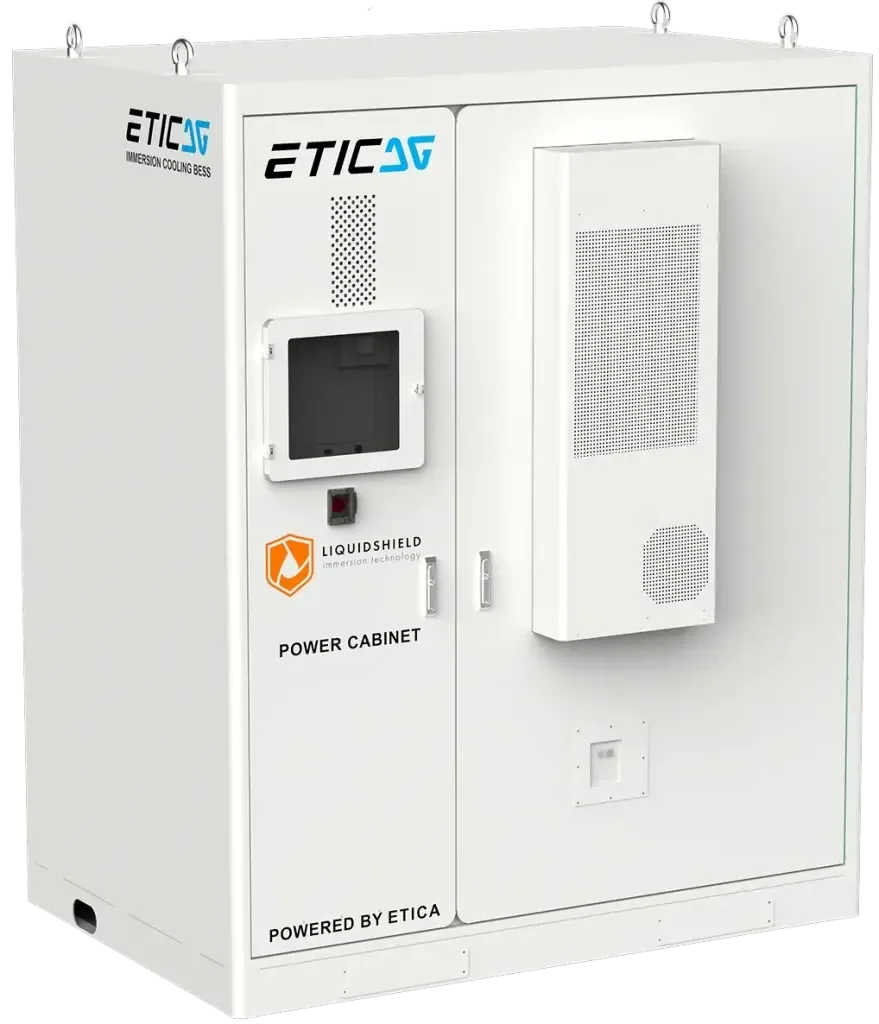

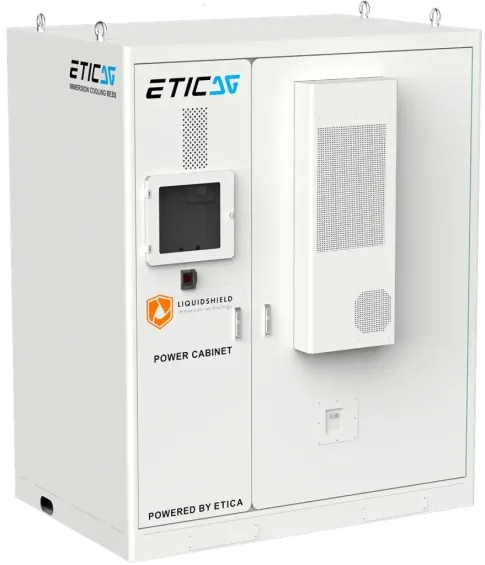

EticaAG Power Cabinet 340
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
Battery Energy Storage Cabinet | 160 kW / 340 kWh
On this page:
The Power Cabinet 340 is a fully integrated 160 kW / 340 kWh energy storage system with a built-in inverter—delivering true plug-and-play capability for commercial and industrial projects.
Featuring EticaAG’s patented battery immersion technology, it ensures unmatched fire safety and consistent thermal performance in any environment. Its high-voltage output and compact footprint make it ideal for behind-the-meter applications, microgrids, or grid services.
Engineered for scalability and flexibility, the Power Cabinet 340 brings reliable, non-flammable energy storage to even the most space-constrained sites.
Patented Immersion Technology
Battery cells are submerged in non-toxic dielectric oil for direct active thermal management, fire suppression, and propagation prevention.
Integrated BMS & EMS
Our non-Chinese BMS and EMS ensure optimal performance, safety, and efficiency, offering unmatched reliability and control.
Active Thermal Management
Our Battery Management System (BMS) monitors temperature and responds with liquid cooling circulation, enhancing heat exchange.​​
Enhanced Fire Suppression
Our immersion fluid immediately cools and extinguishes any flames, ensuring enhanced safety and propagation prevention.
Power Cabinet 340 Specifications
Dimensions: 2000 x 1500 x 2450 mm (W x D x H)
Dimensions (inches): 79 x 59 x 96 in (W x D x H)
Weight: 2.7 tons
IP rating: IP54
Operating temperature: -30°C to +50°C
Relative humidity: 10% to 90% RH, non condensing
Altitude: ≤ 2000 m
Thermal control: Immersion cooling circulated system and HVAC
DC efficiency: ≥93.5% at 0.5P, ≥95.2% at 0.25P
Cell Characteristics
Chemistry: Lithium Iron Phosphate (LiFePO4)
Cell life:
2 hours for 8,000 cycles at 60% SOH at end of life
4 hours for 10,000 cycles at 60% SOH at end of life
Calendar life: 20 years
Depth of discharge: 80% to 100%
Performance
Energy capacity (max): 340 kWh
Rated duration of discharge: 2 hours
DC power at rated duration: 160 kW
DC capacity at rated duration: 340 kWh
Operating voltage: 990 V to 1360 V
Safety
Explosion prevention: Immersion technology circulated and patented to prevent cell propagation
Fire detection: Heat, smoke, and gas detectors
Fire suppression: Circulated immersion technology and aerosol gas
Compliances and certifications: UN38.3, IEC 62619, UL 1973, UL 60730-1, CNS 62619, UL 9540, ISO 12944
Software
Communication interface: Ethernet Modbus/TCP protocol
Operating system: Modbus/TCP side controller
Operations and maintenance: Cloud IoT
HVAC
Cooling system: Air conditioner (HVAC)
Power consumption: 1.7 kW
Cooling capacity: 3 kW
Heating capacity: 1 kW
