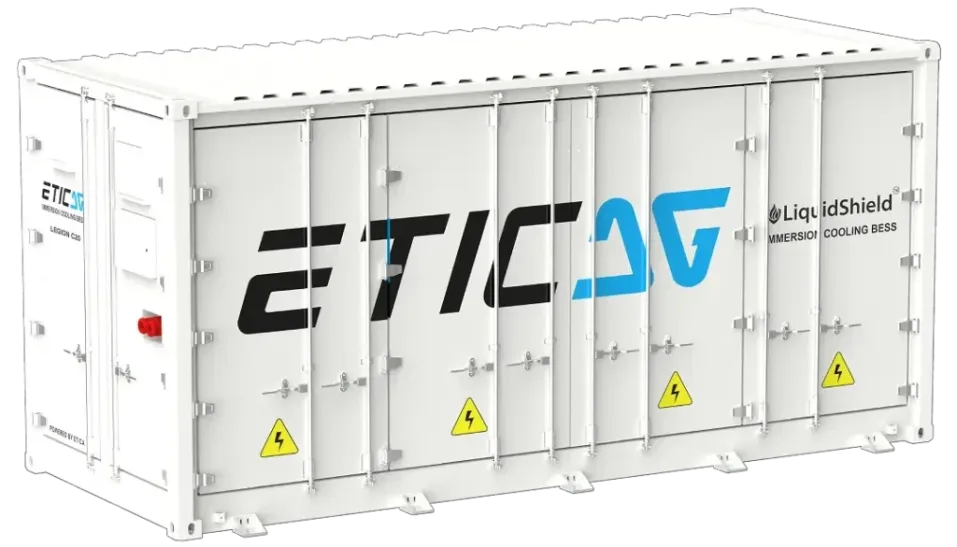

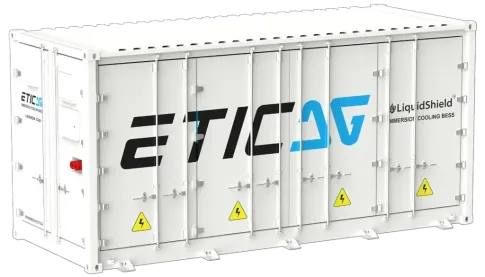

EticaAG Legion C20 BESS
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
20 Foot ESS Container | 3.06 MWh
On this page:
The Legion C20 containerized energy storage system by ETICA embodies a cutting-edge approach to energy storage solutions. With a storage capacity equivalent to a standard 40-foot container in half the size, its modular design not only optimizes project timeline and budget but also maximizes efficiency.Â
Featuring advanced immersion cooling battery technology, state-of-the-art fire-suppression mechanisms, and an in-house Master Battery Management Unit (MBMU), the Legion system sets a new standard for safety and intelligence in the realm of energy storage solutions.
Patented Immersion Cooling
Battery cells are submerged in non-toxic dielectric oil for direct active thermal management, fire suppression, and propagation prevention.
Active Thermal Management
Our Battery Management System (BMS) monitors temperature and responds with liquid cooling circulation, enhancing heat exchange.​​
Integrated BMS & EMS
Our non-Chinese BMS and EMS ensure optimal performance, safety, and efficiency, offering unmatched reliability and control.
Enhanced Durability
Our battery modules have an IP65 rating while our cabinet is rated at IP54, ensuring reliable performance in demanding environments.
Legion C20 Specifications
Dimensions: 2,438 x 6,138 x 2,591 mm (W x D x H)
Dimensions (inches): 96 x 242 x 102 in (W x D x H)
Weight: < 40 tons
IP rating: Container IP54 | Module IP65
Operating temperature: -30°C to +50°C
Relative humidity: 10% to 90% RH, non condensing
Altitude: ≤ 2,000 m
Thermal control: Immersion cooling circulated system and HVAC
DC efficiency: ≥93.5% at 0.5P, ≥95.2% at 0.25P
Legion C20 Cell Characteristics
Chemistry: Lithium Iron Phosphate (LiFePO4)
Calendar life: 20 years
Depth of discharge: 80% to 100%
Cell life:
2 hours for 8,000 cycles, 60% SOH at end of life
4 hours for 10,000 cycles, 60% SOH at end of life
Legion C20 Cell Performance
Energy capacity (max): 3.06 MWh
Rated duration of discharge: 2 hours
DC power at rated duration: 1.53 MW
DC capacity at rated duration: 3.06 MWh
Operating voltage: 1065 V to 1330 V
Legion C20 Safety
Explosion prevention: Immersion cooling circulated system patented to prevent cell propagation
Fire detection: Heat, smoke, and gas detectors
Fire suppression: Fire-fighting aerosol gas
Compliances and certifications: UN38.3, IEC 62619, UL 1973, UL 60730-1, CNS 62619, UL 9540A, ISO 12944
Legion C20 Software
Communication interface: Ethernet Modbus/TCP protocol
Battery management system: CAN
Operating system: Modbus/TCP side controller
Operations and maintenance: Cloud IoT
Legion C20 Cooling System
Cooling system: Air conditioner (HVAC)
Power consumption: 18 kW
Cooling capacity: 20.4 kW
Heating capacity: 6 kW
