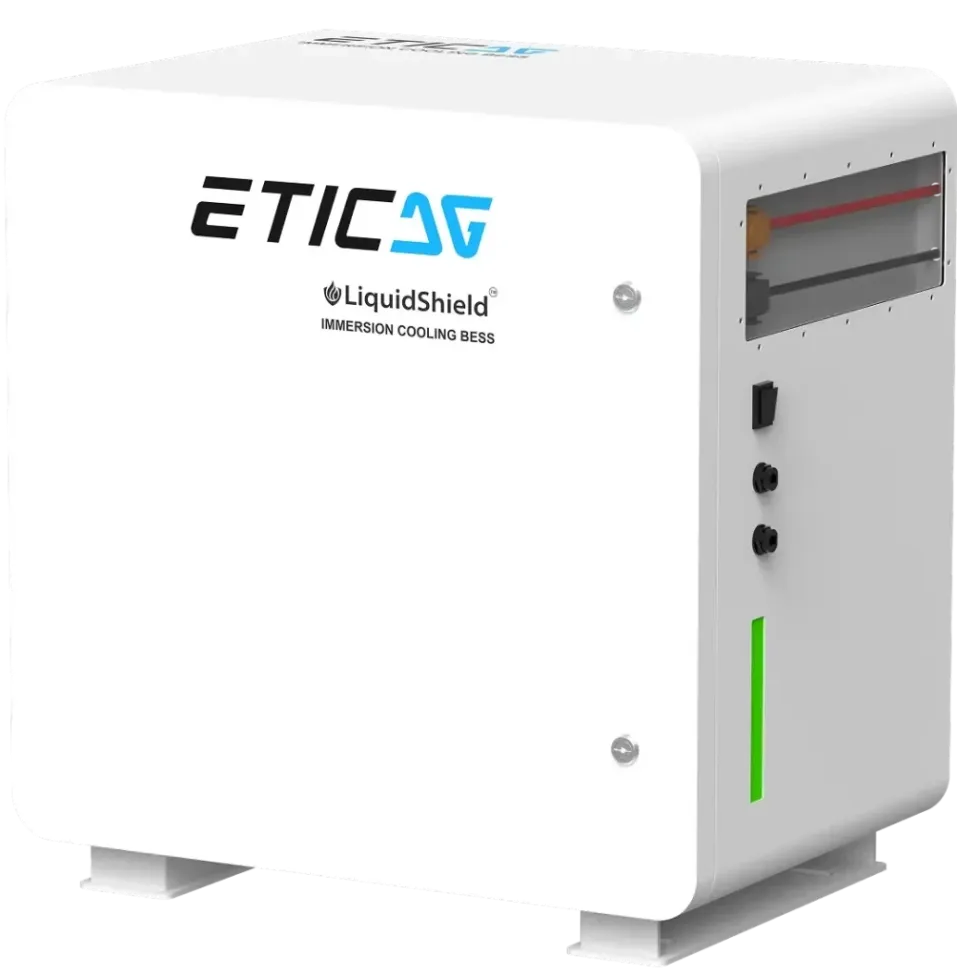

EticaAG Guardian Outdoor BESS
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
Battery Energy Storage System | 11 KWh
On this page:
Introducing Guardian Outdoor, the compact 11 kWh solution for smaller-scale outdoor energy storage. Featuring advanced immersion cooling technology and proprietary BMS & EMS, it ensures superior safety, efficiency, and control.
Built for durability with IP67-rated battery modules and IP54-rated cabinets, Guardian Outdoor is ideal for reliable performance in challenging environments.
Patented Immersion Technology
Battery cells are submerged in non-toxic dielectric oil for direct active thermal management, fire suppression, and propagation prevention.
Efficient Thermal Management
Submerging battery cells in our dielectric liquid prevents hot spots and allows the cells to consistently run at optimal temperatures.
Integrated BMS & EMS
Our non-Chinese BMS and EMS ensure optimal performance, safety, and efficiency, offering unmatched reliability and control.
Enhanced Fire Suppression
Our immersion fluid immediately cools and extinguishes any flames, ensuring enhanced safety and propagation prevention.
Specifications
Dimensions: 712 x 750 x 578.6 mm (W x D x H)
Dimensions (inches): 28 x 29.5 x 23 in (W x D x H)
Weight: < 170 kg
IP rating: Container IP54 | Module IP67
Operating temperature: -40°C to +60°C
Relative humidity: 10% to 90% RH, non condensing
Altitude: ≤ 2000 m
Thermal control: Immersion cooling circulated system and HVAC
DC efficiency: ≥93.5% at 0.5P, ≥95.2% at 0.25P
Cell Characteristics
Chemistry: Lithium Ion
Warranty: 10 years
Depth of discharge: 80% to 100%
Performance
Energy capacity (max): 11 kWh
Rated duration of discharge: 2 hours
DC power at rated duration: 5.5 kW
DC capacity at rated duration: 11 kWh
Operating voltage: 39 V to 53.3 V
Safety
Thermal management: Immersion technology circulated and patented to prevent cell propagation
Fire detection: Heat, smoke, and gas detectors
Fire suppression: Immersion technology
Compliances and certifications: UN38.3, IEC 62619, UL 1973, UL 60730-1, CNS 62619, UL 9540, ISO 12944
Software
Communication interface: Ethernet Modbus/TCP protocol
Operating system: Modbus/TCP side controller
Operations and maintenance: Cloud IoT
HVAC
Cooling system: Air conditioner (HVAC)
Power consumption: 182 W
Cooling capacity: 300 W
Heating capacity: 300 W
