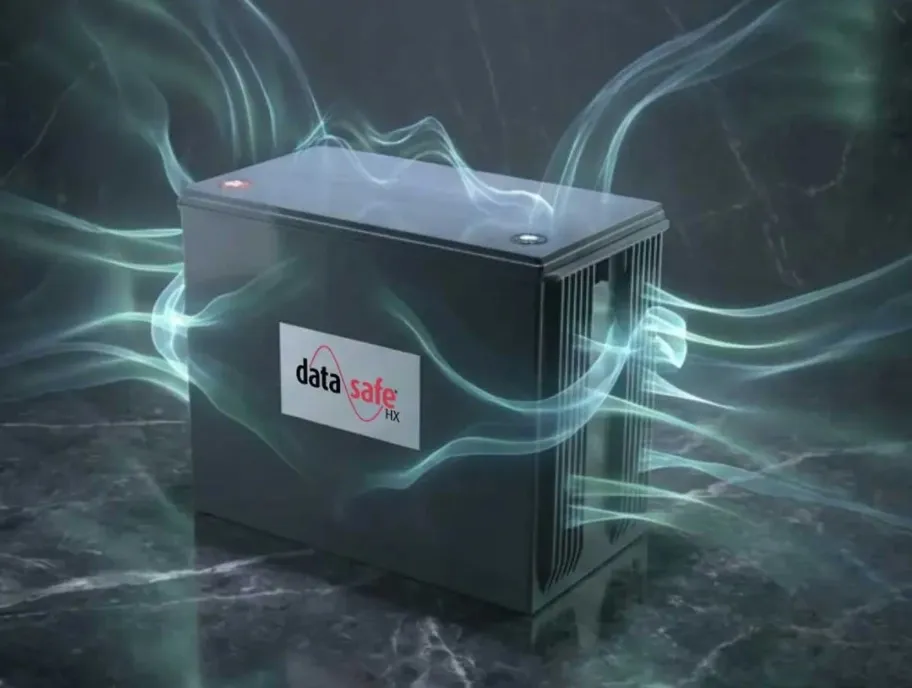

EnerSys DataSafe® HX530T Batteries
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
High-Rate TPPL UPS Battery for Modern Data Centers and Critical Power Applications
On this page:
The EnerSys DataSafe® HX530T battery combines the proven reliability of the DataSafe® HX platform with true Thin Plate Pure Lead (TPPL) technology to deliver exceptional high-rate performance for modern critical power environments.
Designed for UPS systems, data centers, telecommunications networks, and other mission-critical applications, the HX530T provides the power density, recharge capability, and operational resilience required to support today's increasingly demanding backup power requirements. As facilities experience higher power densities, elevated operating temperatures, and more frequent load fluctuations, battery performance becomes increasingly important to maintaining uptime.
The DataSafe® HX530T offers a practical upgrade path for organizations seeking enhanced performance without changing existing battery cabinets, racks, cabling, or installation procedures. Because it shares the same footprint and terminal configuration as equivalent DataSafe® HX batteries, deployment is straightforward and familiar.
Why Choose the DataSafe® HX530T?
True Thin Plate Pure Lead Technology
The HX530T utilizes advanced TPPL construction to provide consistent high-rate discharge performance and improved recharge efficiency compared to conventional lead-acid battery designs.
Optimized for UPS Performance
Engineered specifically for short-duration, high-power discharge applications, the HX530T delivers reliable backup power when utility interruptions occur.
Fast Recharge Characteristics
Lower internal resistance allows the battery to recover more quickly following discharge events, helping ensure readiness for future disturbances.
Broad Operating Temperature Capability
The battery is designed to perform reliably across a wide range of operating temperatures commonly found in modern data centers and critical infrastructure facilities.
Direct Replacement Compatibility
The HX530T integrates seamlessly into existing DataSafe® HX installations without requiring modifications to cabinets, racks, or cable configurations.
Sustainable Design
Manufactured using more than 99% recyclable materials, the HX530T supports environmental sustainability and responsible recycling initiatives.
Applications
The DataSafe® HX530T is ideally suited for:
Data centers
Uninterruptible Power Supply (UPS) systems
Telecommunications facilities
Network infrastructure
Emergency backup power systems
Public safety communications
Industrial control systems
Security and surveillance systems
Transportation and traffic management infrastructure
Technical Specifications
The DataSafe® HX530T is a 12-volt valve-regulated lead-acid (VRLA) battery utilizing Thin Plate Pure Lead technology. It provides 126 Ah capacity at the 8-hour rate and delivers 530 watts per cell for high-rate UPS applications.
The battery features a design life of up to 12 years in standby service and is engineered for reliable operation in temperatures ranging from -4°F to 113°F (-20°C to 45°C).
Physical dimensions measure approximately 13.3 inches long, 6.8 inches wide, and 10.7 inches high, allowing direct replacement within compatible DataSafe® HX installations. The battery weighs approximately 89.9 pounds and utilizes M6 female terminals.
Alpine Power Systems Support
Alpine Power Systems provides complete sales, engineering, installation, commissioning, maintenance, testing, and replacement services for EnerSys battery systems nationwide. Our critical power specialists can help evaluate your UPS battery requirements and identify the right solution for your application.
Contact Alpine Power Systems today to request pricing, availability, or technical assistance for the EnerSys DataSafe® HX530T battery.
Applications
- Banking & Financial
- Data Center
- Government
Technologies
- TPPL (VRLA)
Manufacturer
See below for documentation relating to this product line that is available to download. To download this documentation, please click on the desired document you’d like to download and fill out the required form information fields. You will be able to view and download the documents upon completion of the download form.
This product is part of the EnerSys DataSafe HX Top Terminated Batteries family.
