EnerSys DataSafe HX600T Battery | TPPL UPS Battery

The AlphaCell® 4.0HP+ battery is a premium Thin Plate Pure Lead (TPPL) AGM battery designed specifically for cable broadband and outside plant backup power applications. Built for distributed network deployments where reliability, predictable replacement intervals, and long-term operating stability are critical, the AlphaCell 4.0HP+ helps broadband providers reduce maintenance requirements while maximizing network uptime.

Featuring advanced TPPL technology and integrated catalyst technology, the AlphaCell 4.0HP+ is engineered to deliver stable float performance and improved service life in demanding outdoor environments, including locations exposed to sustained elevated temperatures. The result is a battery solution that helps operators improve reliability while lowering total cost of ownership across large-scale broadband networks.

Designed as a footprint-compatible replacement for existing broadband battery installations, the AlphaCell 4.0HP+ provides an easy upgrade path without requiring modifications to cabinets, enclosures, or power system configurations.

Why Choose the AlphaCell 4.0HP+?

Advanced TPPL Technology

The AlphaCell 4.0HP+ utilizes Thin Plate Pure Lead technology to provide enhanced electrochemical stability during float operation. This advanced design supports dependable performance and predictable battery behavior across a wide range of operating conditions.

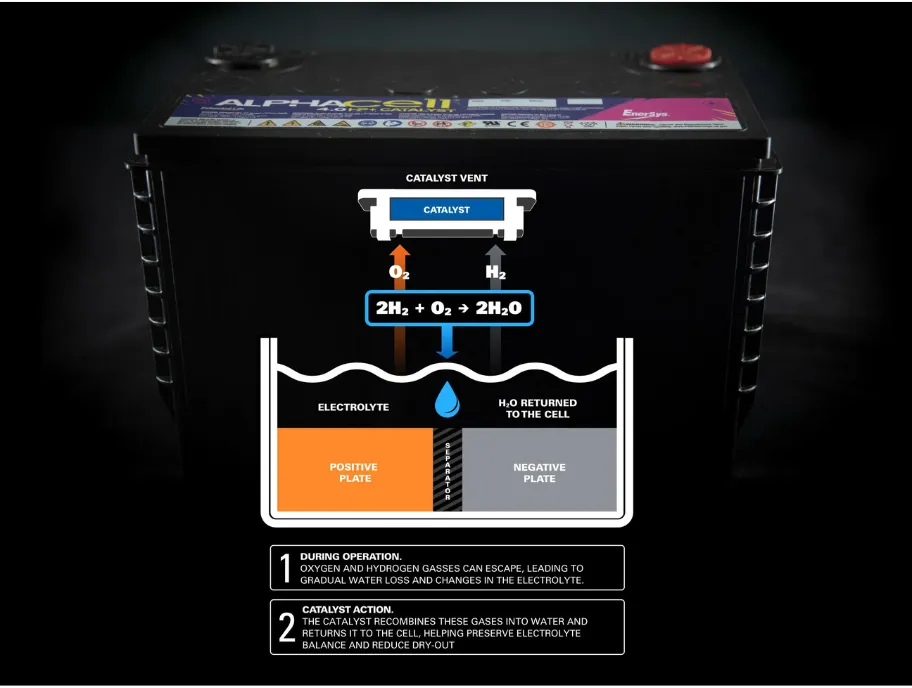

Integrated Catalyst Technology

An integrated catalyst promotes internal gas recombination during float operation, helping minimize water loss and reduce the risk of battery dry-out over time. This technology contributes to improved internal component stability and longer service life, particularly in elevated temperature environments.

Extended Service Life in Outdoor Applications

Engineered specifically for distributed broadband networks, the AlphaCell 4.0HP+ is designed to maintain service life stability in challenging outdoor operating conditions where heat exposure can significantly impact conventional battery performance.

Stable Float Performance

The battery is designed to deliver stable float operation with reduced sensitivity to charging current variations, helping improve overall system reliability.

Lower Maintenance Requirements

Reduced water loss helps extend battery life and minimize maintenance demands, allowing operators to lower service costs and reduce truck rolls.

Drop-In Replacement Design

The AlphaCell 4.0HP+ features a footprint-compatible Group 31 design that simplifies battery replacement and installation within existing broadband power systems.

BABAA Compliant

AlphaCell HP and HP+ batteries are fully compliant with Build America, Buy America Act (BABAA) requirements, making them an ideal choice for federally funded broadband infrastructure projects.

6-Year Warranty

Backed by a comprehensive six-year warranty, the AlphaCell 4.0HP+ provides long-term confidence and dependable network protection.

Applications

The AlphaCell 4.0HP+ is ideal for:

Cable broadband networks
HFC (Hybrid Fiber Coaxial) infrastructure
Outside plant power systems
Fiber network backup power
Broadband node backup systems
Distributed telecommunications infrastructure
Utility communication networks
Remote communication sites
Critical network power applications

Technical Specifications

The AlphaCell 4.0HP+ is a 12-volt TPPL AGM battery designed in a Group 31 footprint. It provides 114 amp-hours at the 20-hour rate and 102 amp-hours at the 10-hour rate, delivering dependable runtime for broadband standby applications.

The battery supports a 25-amp runtime rating of approximately 240 minutes and is capable of delivering up to 900 amps of discharge current. Short-circuit current is rated at approximately 3,200 amps, while internal impedance is approximately 0.0022 ohms.

The battery operates across an exceptionally wide temperature range from -40°F to 140°F (-40°C to 60°C) when used with proper temperature compensation. Storage temperatures range from 14°F to 104°F (-10°C to 40°C), and batteries may be stored for up to 24 months at 60°F (20°C).

The AlphaCell 4.0HP+ utilizes threaded alloy insert terminals accepting 1/4-20 UNC hardware and measures approximately 13.4 inches long, 6.8 inches wide, and 8.5 inches high. Total weight is approximately 74 pounds.

Recommended float voltage is 13.5 to 13.8 VDC per battery at 77°F (25°C), while recommended refresh and boost charging voltage ranges from 14.4 to 15.0 VDC.

Built for Modern Broadband Networks

Broadband providers operate thousands of batteries across geographically dispersed networks where maintenance costs, environmental conditions, and service continuity directly impact operational performance. The AlphaCell 4.0HP+ was developed specifically to address these challenges by delivering improved electrochemical stability, enhanced resistance to elevated temperatures, and predictable replacement interval performance at scale.

By combining TPPL technology, catalyst-assisted recombination, and a proven broadband-focused design, the AlphaCell 4.0HP+ helps operators improve reliability while reducing lifecycle costs throughout their network infrastructure.
