Eltek Flatpack2 IBB System

The IBB Power systems and building blocks are built around our Flatpack2 rectifier and designed for applications as switchgear, telecom, emergency lighting, alarm systems etc.

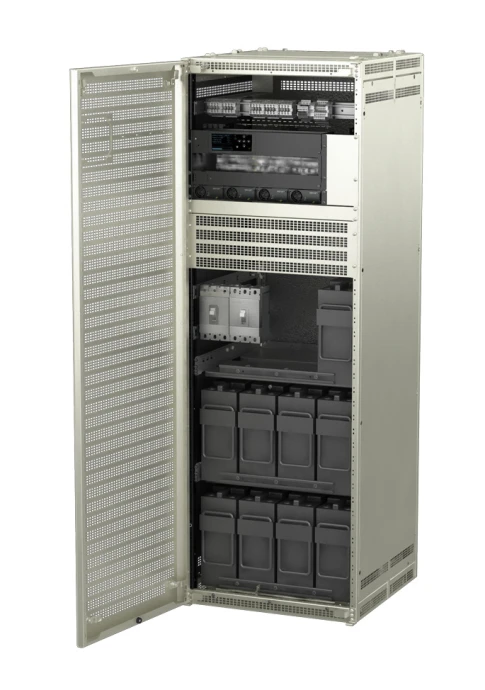

The basic power core has 4-8 rectifier positions, a controller and a bulk DC output feed, that can be used in the FPC cabinet with possibility for optional DC distribution, battery breaker and connection unit.

The power core is prepared for any Flatpack2 rectifier module and depending on the rectifier choice the system output can be either of the following:

• 24V/40 - 300A, 48V/15 - 300A, 60V/15 - 266A

• 110V/10 - 134A, 125V/10 - 128A, 220V/5 – 73A

Eltek Flatpack2 IBB System Industry Applications:

IBB Systems includes the FP2 High efficiency rectifier for DC power supply facilities and can be used with or without battery. All in all this gives the Industrial Building Blocks (IBB) superior flexibility and can be used in a various kind of application such as;

• Low & High Voltage switchgear

• Transformer & SUB Stations

• Power Generation & Distribution

• Emergency lighting systems

• Rail applications; Telecom, signaling and power conversion

• Industrial control systems

• Process and Heavy industry

Eltek Flatpack2 IBB System Key Features:

The modular concept has a lot of benefits compared to traditional solutions in the industry:

• Pre-engineered systems and building blocks

• Easy installation & commissioning

• High efficiency; less power consumption and heat dissipation

• Overall Size and footprint of cabinet: 50% of Thyristor

• Controlled Size

• Modular Hot Plug-in Construction allows

• Redundancy; n+1, n+2… configurations

• Very low MTTR; < 5 minutes

• Very high MTBF > 350000 hours

• Extensive control & alarm functions with remote control capabilities

• Optional built in VRLA batteries (up to 125VDC)

Alpine Power Systems is a value-added reseller of Eltek products. Alpine can provide DC Power System services on all Eltek products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine is ISO 9001 Quality, 14001 Environmental, & 45001 Health & Safety Certified. Call or email us today for quotation requests and technical inquiries.
