Charging Technologies Loaner Shop Chargers
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
Experience maximum output current from a standard 120 volt/15-amp receptacle with our Loaner Shop Charger.
On this page:

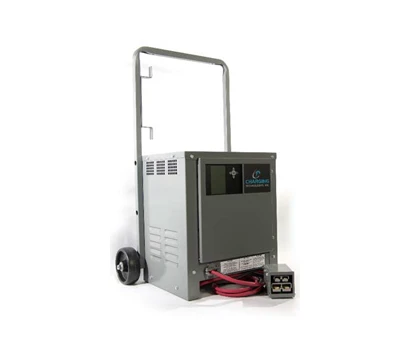

Experience maximum output current from a standard 120 volt/15-amp receptacle with our Loaner Shop Charger. This powerful charger comes in two convenient models, one with a wheel and handle kit (LS) and the other as a standalone unit (CCS).
Input: 120 VAC, 15 amps maximum AC draw.
Max Output: 28 amps DC for 2 – 24 lead-acid cells, output current tapers to maintain input watts.
Weight: 110 lbs (Including wheel kit), 88 lbs (Without).
Dimensions: LS = 36”H, 27”W, 17-3/4”D; CCS = 20.5”H, 17.25”W, 14.75”D.
Control: Automatic Start/Stop (settable for hours of recharge) with optional mechanical timer and ammeter for precise charging.
Power Cord: 8-foot of 14/3 SJTOW cord with molded 15-amp plug.
DC Cables: 8-foot, 4 AWG color-coded (red Positive, black Negative).
Connector: SB175 gray connector.
Manufacturer
See below for documentation relating to this product line that is available to download. To download this documentation, please click on the desired document you’d like to download and fill out the required form information fields. You will be able to view and download the documents upon completion of the download form.
