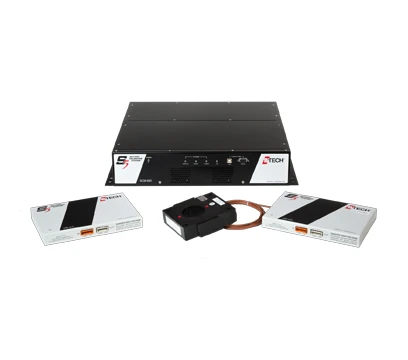

BTECH S5 Battery Monitoring System
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:
The S5 Battery Management System is designed to monitor Lead Acid and NiCad battery systems.
On this page:
The S5 Battery Management System is designed to monitor Lead Acid and NiCad battery systems. Capable of supporting up to 480 individual cells and eight strings per system, the S5 allows you to make prompt evaluations with advanced notification of potential failures, collect data from most battery types, including cells with high Amp-Hour ratings (4000+).
This system monitors unit voltages, unit impedance, pilot temperatures, differential temperatures, and functions as a data logger when batteries are in discharge. Adding optional smoke detection and battery compartment heat detectors will enable compliance with local fire codes. Electrolyte Level Monitoring can be added to comply with NERC utility standards, and the S5 system can easily gather data about your battery system and trigger alarms that keep you in the know.
System Features
Monitors system/string/unit voltages, float, charge, and discharge current.
Provides real-time thermal runaway management Records ambient and pilot cell temperatures.
Monitors elevated unit voltages and excessive float charging.
Optional programmable relay contact system that turns off the battery charger or trips the battery breaker (dual UVR or shunt trips required).
Measure up to 480 individual units and 8 string systems.
Compatible with most battery types including 1 to 16-volt VRLA/NiCad/VLA.
Individual string current monitoring for multiple systems.
Complete isolation from the battery string.
