Benning TEBEVERT III Modular Inverters

The Benning TEBEVERT III Inverter system is perfect for information, telecommunication, and industrial applications that demand continuous power protection and availability. The use of semiconductors with high switching frequencies allows for compact construction, low weight, and high efficiencies. The TEBEVERT III Inverter system can be scaled up in 5kVA increments, up to a maximum power output of 25kVA. Modules operating in parallel allows customers to run the inverter in an N+1 configuration for added redundancy.

TEBEVERT III Modular Switch-mode Inverter Features:

• Single Phase Inverter Output

• use of existing battery & rectifier infrastructure

• power range: 5 kVA to 25 kVA (individual 5kVA/4kW hot-plug modules)

• input voltages

  • 48 VDC Standard (120VDC system available upon request)

  • 120VAC (L/N) Standard Bypass Input

  • 120/240, 208, 220, 230, 240, 480, and 415VAC

• output voltages

  • 120VAC ± 5 % adjustable (5kVA module) Standard

  • 120/240, 115/230, 230, and 110/220VAC (non-UL) options available

• System built in cabinet

  • Zone 0, Zone 4, and NEBS lvl 3, Zone 4 options

• compact, modular, fail-safe

• Communication Options

  • MCU2000, Display, SNMP, and TCP/IP available

• cabinet clearance required

  • Front: 24"; Back: 12"; Top: 12"

Maximum Availability:

• n+1 redundancy

• stand-alone modules

• extensive signaling and monitoring functions

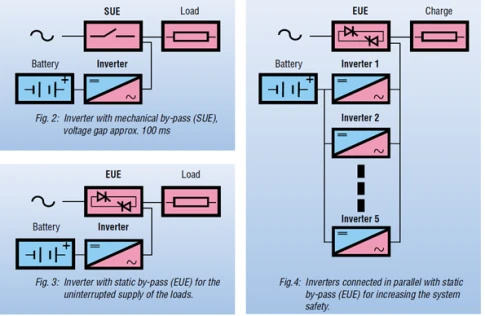

• static bypass switch

• available maintenance bypass switch

• high quality output power

• 500% overload capacity

• optional remote monitoring

Highest Economic Efficiency:

• energy-efficient

• easy adaptation of system power to changing applications

• less than 3% harmonic distortion on the output

• hot-swappable modules

Alpine Power Systems is a value-added reseller of Benning products. Alpine can provide DC Power System services on all Benning products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine is ISO 9001 Quality, 14001 Environmental, & 45001 Health & Safety Certified. Call or email us today for quotation requests and technical inquiries.
