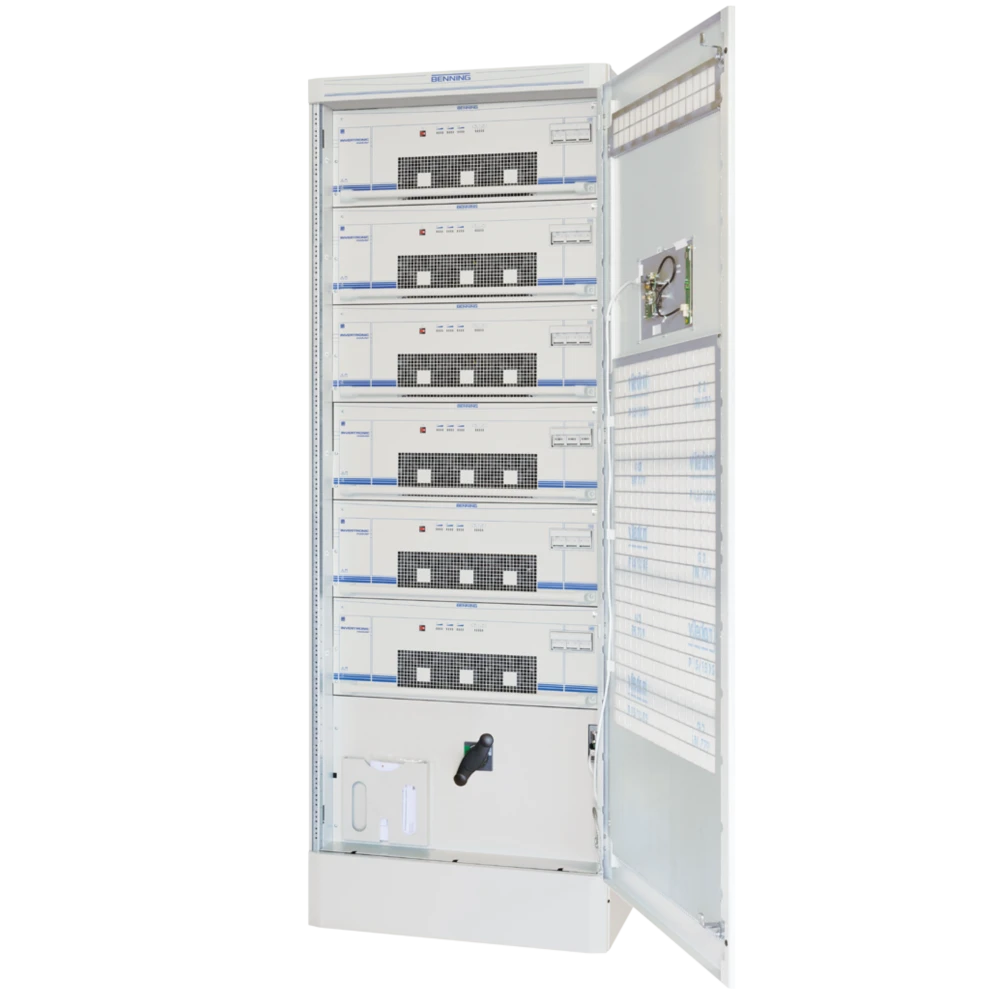

Benning INVERTRONIC Modular Three-Phase Inverter Systems

Benning offers a modular three-phase inverter system for mission critical loads in information, telecom, and industrial applications that demands continous power protection and availability in the event of a main utility power failure, and reasonable power quality in the event of critical main utility power conditions.

An AC Priority option for INVERTRONIC modular systems is now available. This options allows the loads to be powered by the incoming AC Bypass power during normal operation of the inverter system. In the event of a fault with the AC power, the AC Priority switch will feed the load from the inverter power instead. This provides greater operating efficiencies, as the conversion step is bypassed, which also reduces wear on these components.

INVERTRONIC Modular Three-Phase Inverter Features:

• three-phase

• IGBT inverters

• use of existing battery & rectifier infrastructure

• power range: 10 kVA to 120 kVA

• input voltages

  • 48 VDC Standard (125VDC/180kVA system available upon request)

  • 120/208 V +N Bypass Input

  • 480/277 V +N Bypass Input (with special build)

• output voltages

  • 120/208 V +N ± 5 % adjustable (10 kVA module)

  • 230/400 V +N ± 5 % adjustable

  • 480/277 V +N (with special build)

• 19" module

• compact, modular, fail-safe

• No rear cabinet clearance required

• circuit design

  • Digital controller

Maximum Availability:

• n+1 redundancy

• stand-alone modules

• extensive signaling and monitoring functions

• static bypass switch

• service bypass

• high quality output power

• galvanically isolated

Highest Economic Efficiency:

• energy-efficient

• easy adaptation of system power

• low volume and weight

• hot plug

• plug and play

Alpine Power Systems is a value-added reseller of Benning products. Alpine can provide DC Power System services on all Benning products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine is ISO 9001 Quality, 14001 Environmental, & 45001 Health & Safety Certified. Call or email us today for quotation requests and technical inquiries.
