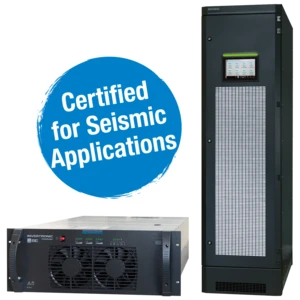

Benning INVERTRONIC Modular SE Inverters

Benning INVERTRONIC modular SE Three-Phase Inverter Systems, ensure highest power protection and availability. Introducing – INVERTRONIC modular SE, the world’s highest power density, modular, true three phase inverter system for telecom, datacenter, and other critical AC power applications.

The first model, with -48 V DC input and 208 / 120 V AC, 60 Hz output is targeted for the North American telecom industry. Recognizing that most telecom AC loads are single phase, why introduce a three phase inverter?

It allows for efficient load balancing between phases, particularly as this applies to a typical commercial building AC supply. Costs associated with distribution transformers, protective devices, and cabling can be minimized.

Maximum availability through:

• Very high reliability

• Very low mean time to repair (MTTR)

• Modular self-configuration for N+1 redundancy

• Certified for seismic applications

• Integrated manual bypass switch in cabinet

• “Hot swap” modularity, hot pluggable 10 kVA Inverter modules each with built-in SBS for the ultimate scalability

No single points of failure through:

• Redundant critical circuits in each module

• Multi-master operation

• Decentralised parallel architecture

Lowest running costs through:

• High efficiency

• Small footprint, 60 kW systems in a single cabinet

• “Pay as you grow” scalability, 3 phase inverter systems expandable up to 240 kVA

• AC or DC primary software selectable feature

• Unity power factor inverter modules 10 kVA / 10 kW

• Optional features include: System bypass cabinets and distribution cabinets

• Customized solutions

Highest power quality through:

4th Generation DSP Technology for outstanding dynamic step load response and maintenance of high quality, low distortion sine wave output into non-linear loads

Cost effective replacement:

Many applications involve replacement of an existing UPS. Critical AC loads are now fed inverted power continuously from a -48 V DC plant with a typical 4 - 8 hours back-up time. This configuration protects the loads from AC mains power disturbances. The cost of yearly UPS service contracts and associated separate UPS battery maintenance can also be eliminated.

Cutover from a three phase UPS to the INVERTRONIC modular SE is quick and easy because the inverter system output can be connected directly the existing three phase AC distribution. There is no need to incur the cost and downtime associated with disturbing the existing distribution panels and cabling.

Alpine Power Systems is a value-added reseller of Benning products. Alpine can provide DC Power System services on all Benning products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine’s Certified Technicians are equipped to maximize the performance and efficiency of your UPS system. Contact us today for pricing and technical inquiries.
