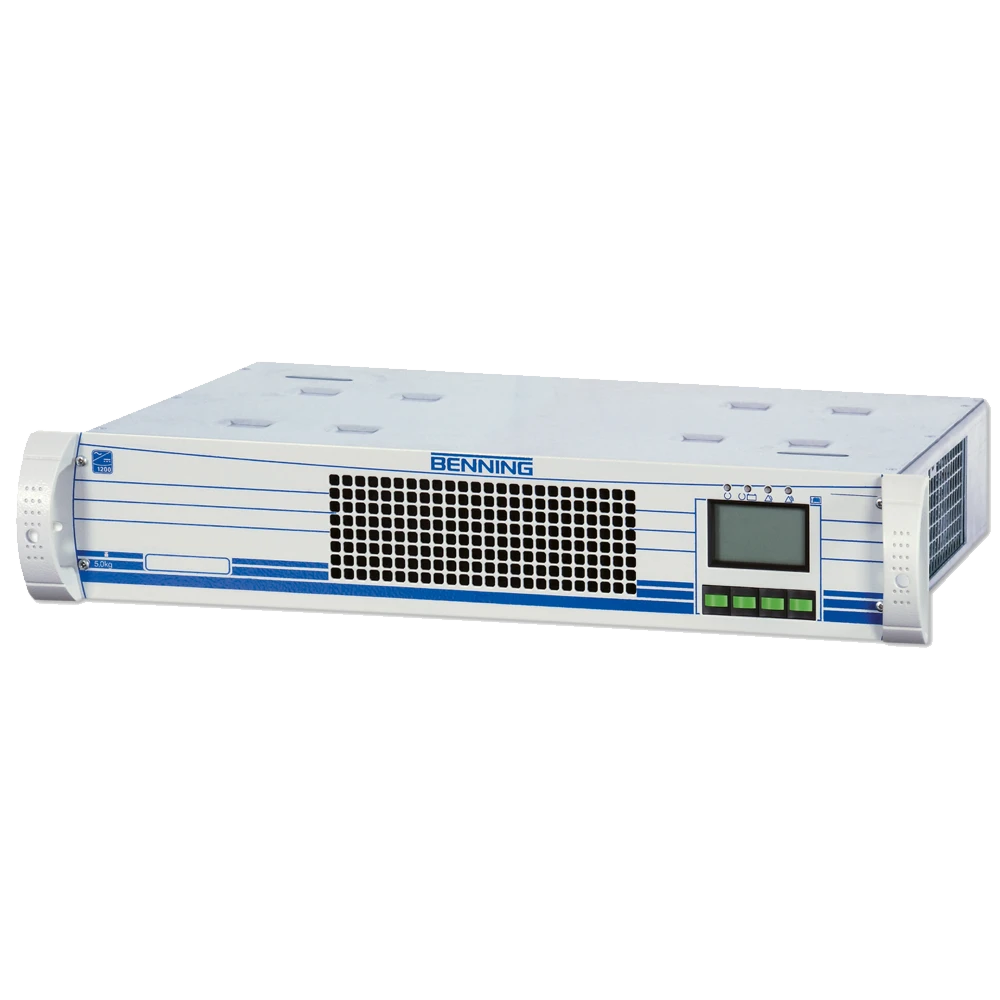

Benning ADC Modular Rectifier

The BENNING ADC rectifier line, with its modular and compact design, provides a perfect solution for a wide range of applications in the industrial and telecommunication market. Electronic equipment for the process and transportation industries, as well as for telecommunication, power generation and distribution utilities, are using microprocessors, and require continuous DC power in the event of mains failure or mains disturbances.

ADC Modular Rectifier Features:

• switched-mode rectifier

• power range of 300 W to 2,400 W

• wide-range input

  • 93 V to 264 V without derating

• suitable for all common voltages

  • 12 V, 24 V, 48 V, 60 V, 108 to 110 V, 216 to 220 V

• 19" module

• compact, modular, fail-safe

• circuit-design

  • digital controller

Maximum Availability:

• n+1 redundancy

• stand-alone modules

• extensive signaling and monitoring function

• different operating modes available

• temperature-controlled charging

• battery availability test / battery circuit test

• galvanically isolated

• high quality of output power

Highest Economic Efficiency:

• low residual ripple at rectifier output

• low THD (total harmonic distortion)

• suitable for Lead and NiCd batteries

• low volume and weight

• easy adaptation of system power

• low-cost “all-inclusive” system

• plug and play

Alpine Power Systems is a value-added reseller of Benning products. Alpine can provide DC Power System services on all Benning products including engineering, installation, preventative maintenance, monitoring and recycling. Alpine has 25 locations and 200 technicians that are available to provide service nationwide. Call our inside sales group at 877-993-8855 for assistance.
