Alpha 48Vdc CXPS-C 48-12000
Alpine Power Systems' experienced technical support & sales team is here to assist your needs:

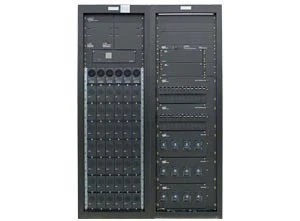

The Cordex CXPS-C power system provides high capacity DC power for large communications applications.
On this page:
The Cordex CXPS-C power system provides high capacity DC power for large communications applications. This system combines the capabilities of installation friendly distribution, advanced microprocessor based supervision, and modular rectifiers in a seamless integrated package. Shunt mux provides single point monitoring of branch distribution with data logging features.
The Cordex CXPS-C system is cost effective due to the internal copper busswork, and is delivered ready to assemble with factory tested components. Cable access is from the top; for standard installations and bottom; (load circuits) for computer floor applications. Hot swappable Cordex power modules and internal busswork provide safe and easy installation and maintenance.
Key Applications
The CXPS-C 48-12,000 is a next generation centralized DC power plant that combines ease of service, installation, and maintenance in a large switching center plant, enabling service providers to realize the economic benefits of high efficiency rectifiers, high density design and intelligent control.
Unlike other large plants, the CXPS-C offers 4000 Amps of rectification in a single bay which can be equipped with either single phase or 3-phase rectifiers.
Product Highlights
48V 12,000A centralized power solution for MSC, CO, Data Center and Cable Headend facilities
High efficiency Cordex modular rectifiers reduce operating costs
Flexible circuit breaker, TPS and TPL fuse options designed to feed equipment or remote BDFBs
Compact footprint dramatically reduces floor space requirements
Internal Bay-to-Bay copper busswork and easy access to connections simplify installation and serviceability
Expandable power and distribution bays allow for easy and cost effective modular growth
Applications
- Central Office
- Data Center
- CATV Headend
